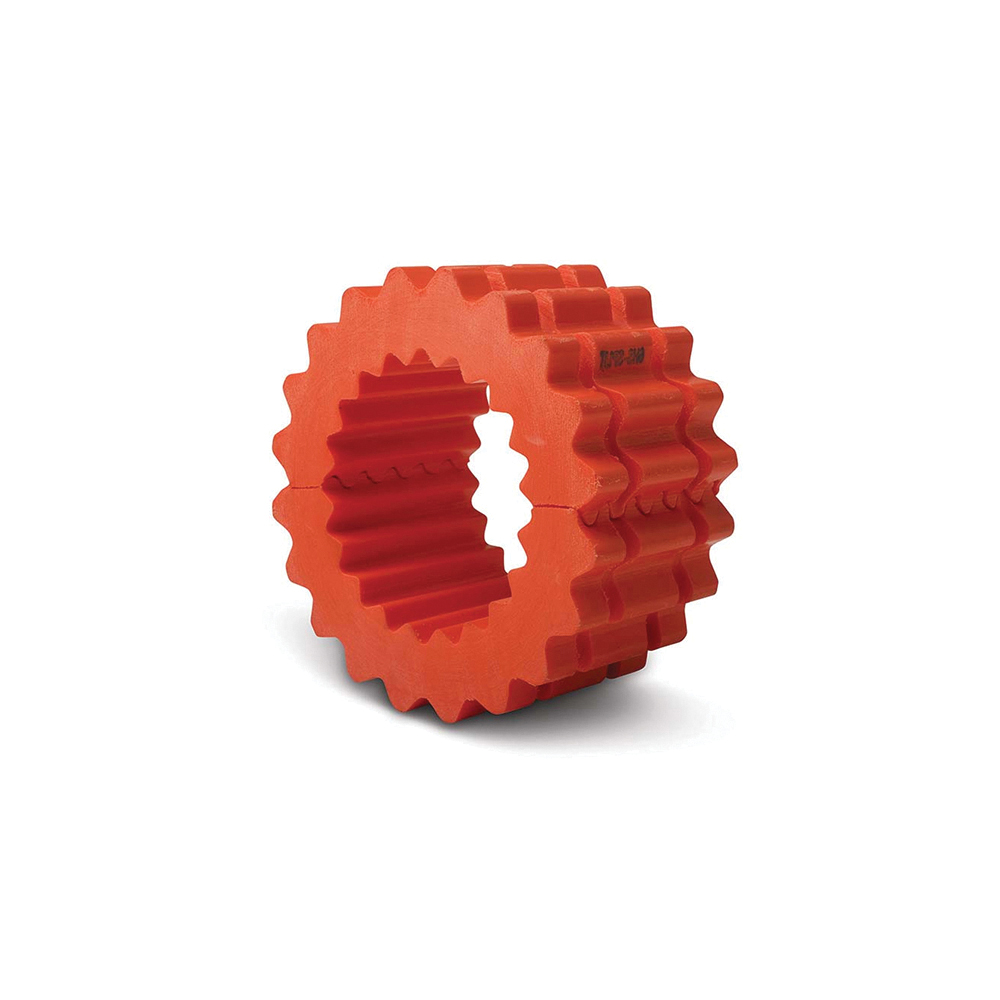

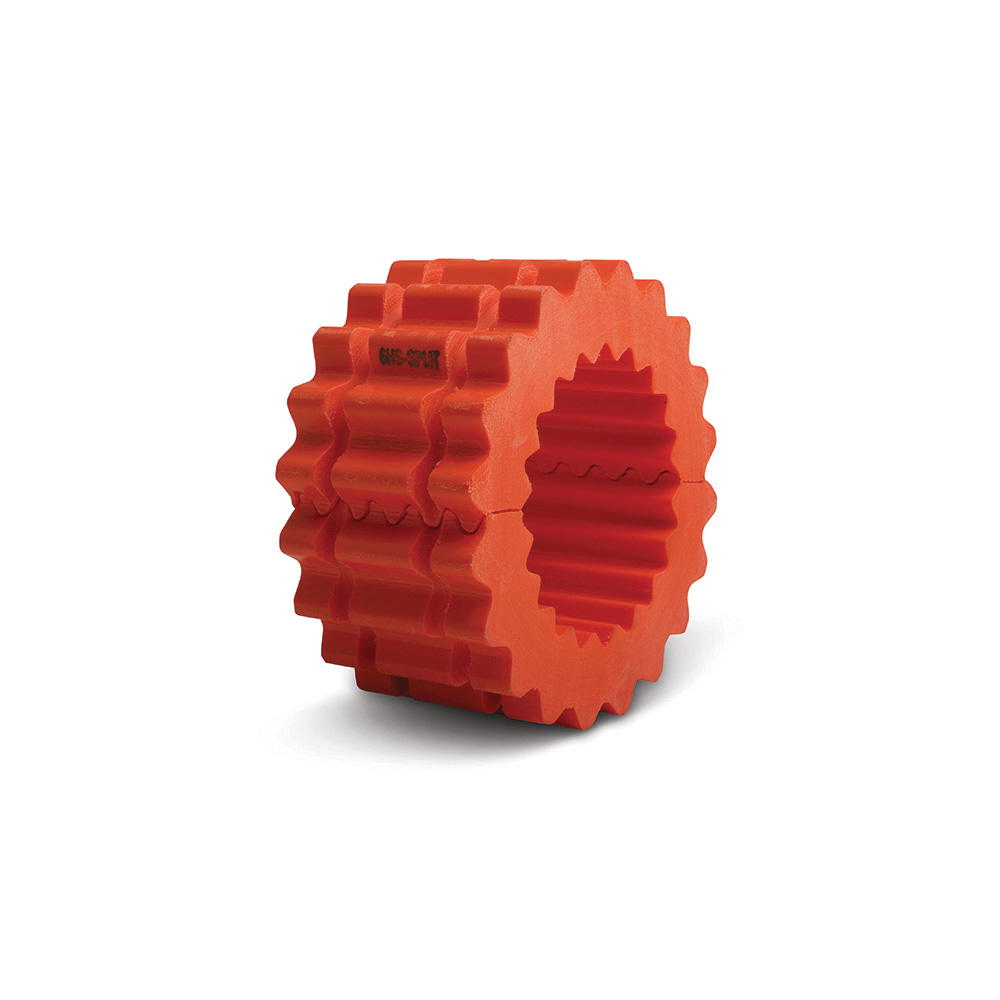

T.B. Woods S-FLEX COUPLING INSERTS/SLEEVES TBW 9-HS
Our new Sure-Flex® Plus EPDM and neoprene sleeves are best-in-class for coupling performance and value. Their 4-way flexing action absorbs virtually all types of shock, misalignment and end float. With Sure-Flex® couplings, the need for lubrication and maintenance is eliminated.
-
BrandTB Wood's®
-
UPC698672660341
-
Manufacturer Part Number9HS
-
CountryUSA
-
Temperature Rating-65 to 250 deg F
-
MaterialHytrel
-
Maximum Speed3750 rpm
-
Torque Rating7200 in-lb
-

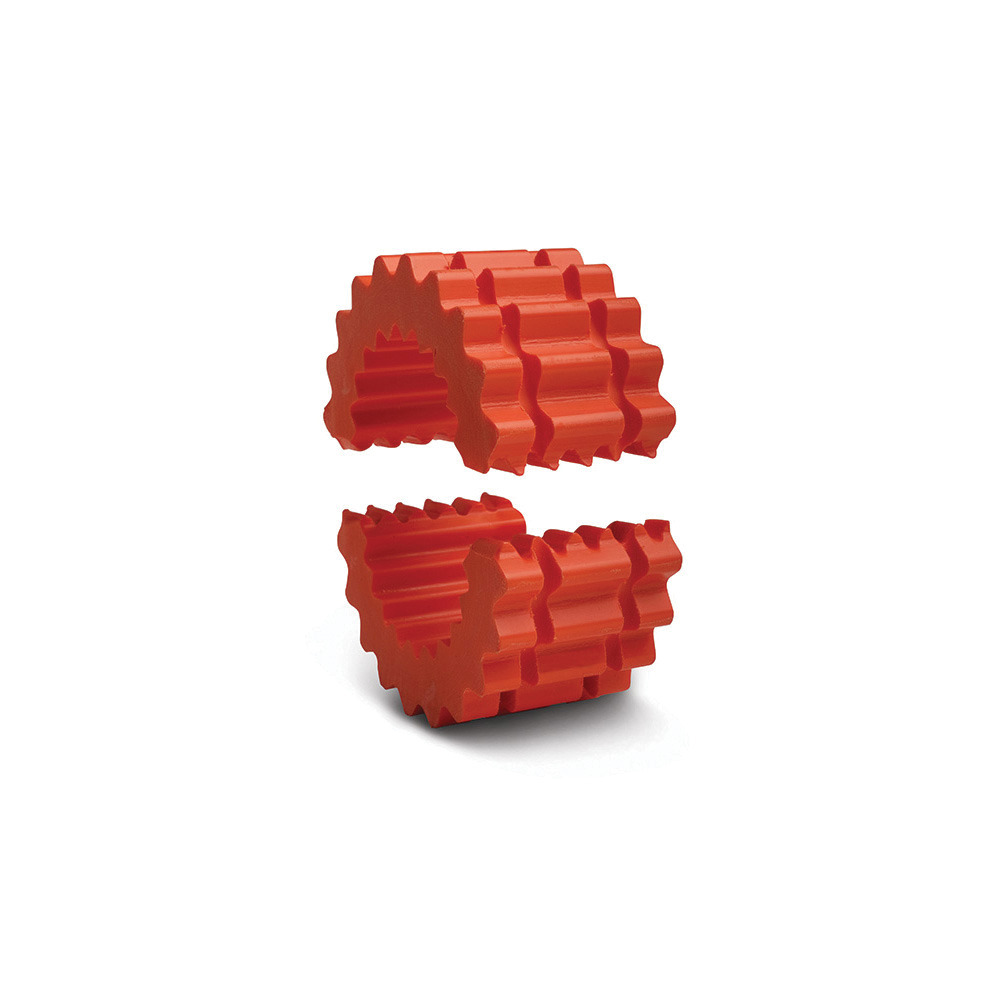

Type1-Piece Split Type HS
-
Coupling Size9
-
Inside Diameter7/16 to 2-7/8 in
-
Outside Diameter6 in
-
Length3 in
-

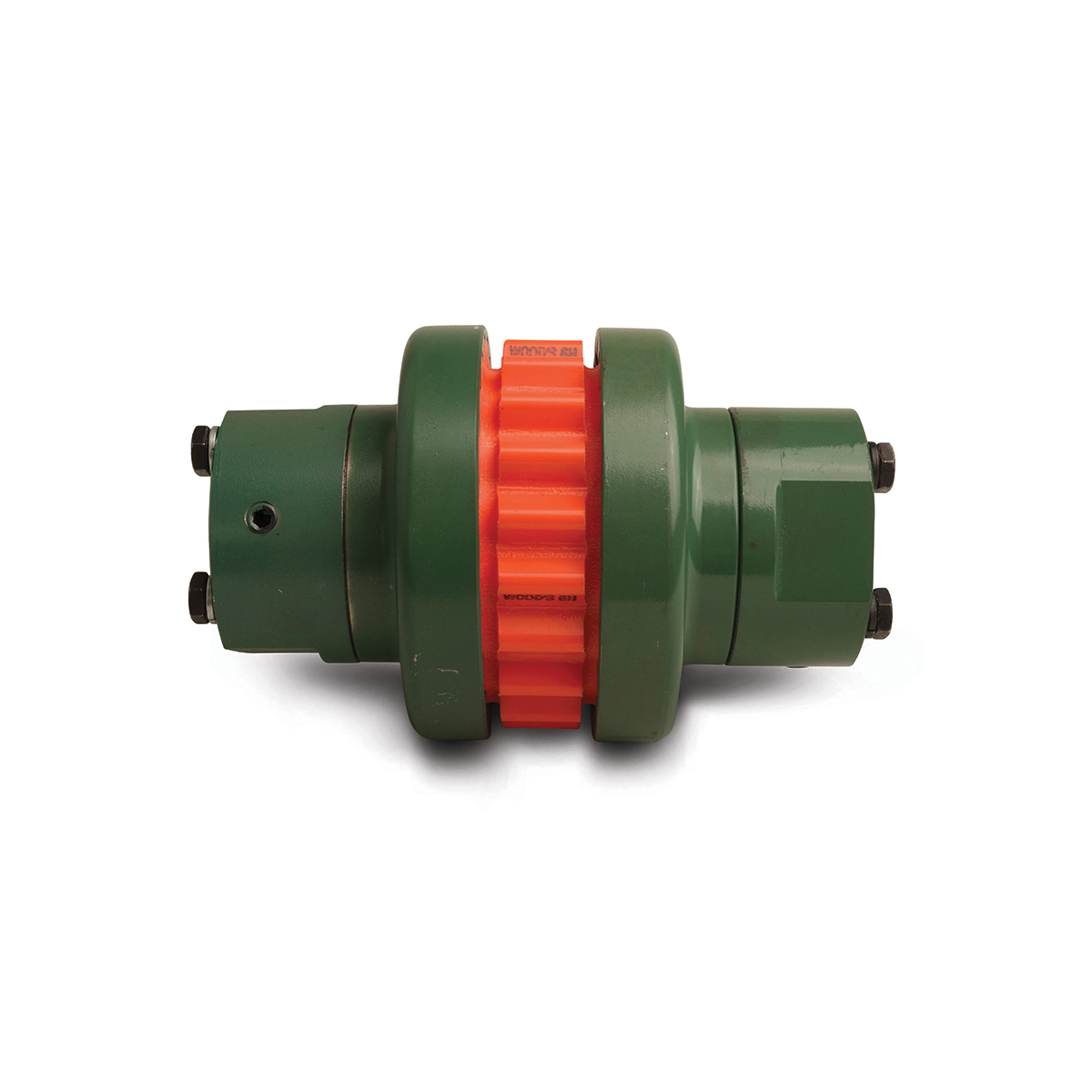

Suitable For Use WithSure-Flex® Plus S, C and SC Flange and Elastomeric Coupling
- They cannot be used with J or B flanges or as direct replacements for EPDM or neoprene sleeves
-
UNSPSC31163000
-
Standards/ApprovalsCE Certified|PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Catalog
-
Instruction/Installation Manual
