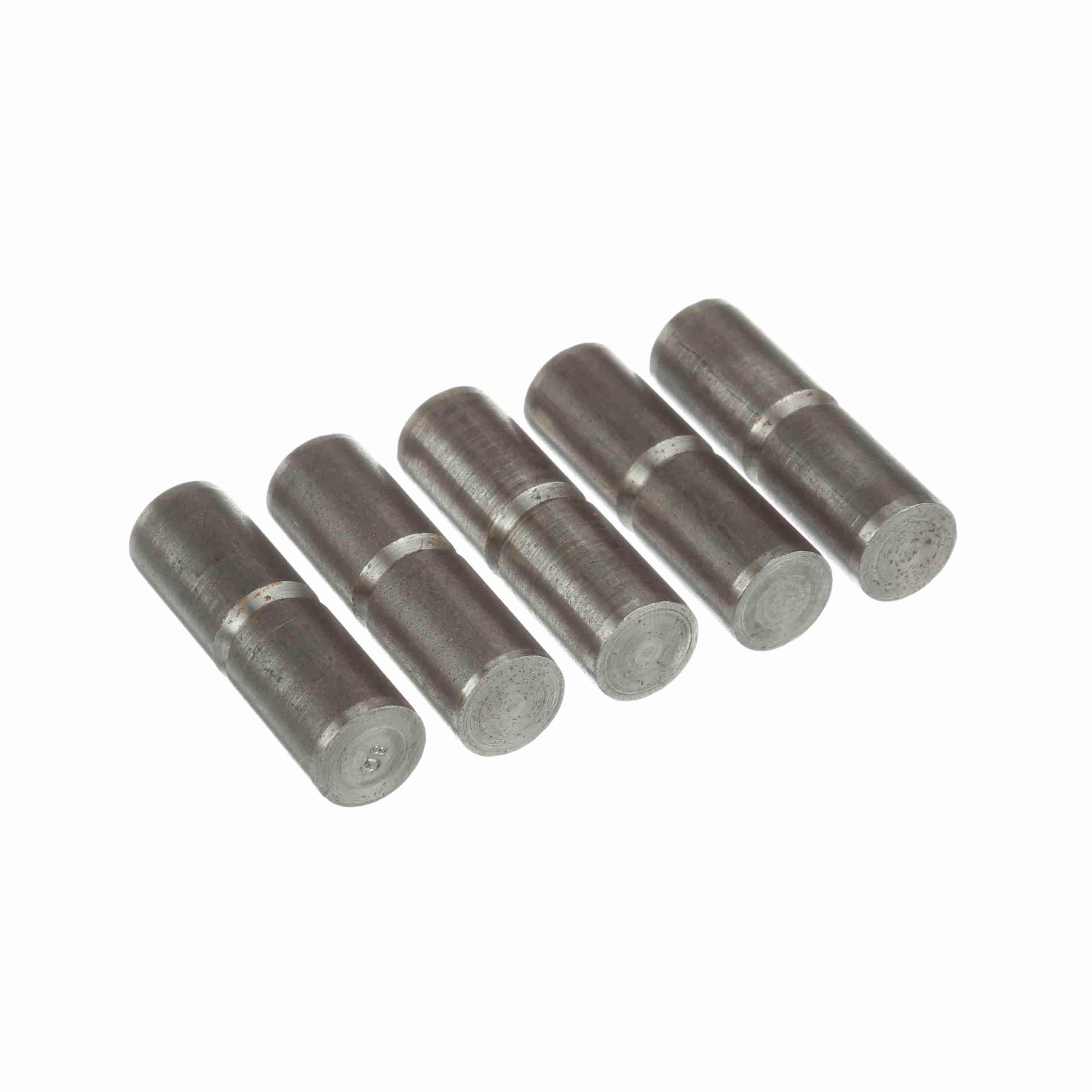

Browning SHEAR PINS BRW 8-Q-SH-PIN
Browning® shear pin hubs are designed to shear a necked pin at a predetermined load. This protects equipment from overloads. Consisting of a hub assembly, a sprocket and shear pin, the shear pin bridges between the sprocket and hub assembly. The shear pin is available in load increments, so the closest one to your application requirements must be chosen. Resetting the shear pin hub is accomplished manually by replacing the shear pin. Best applied to applications where infrequent overloads are encountered.
-
BrandBrowning®
-
UPC662289145263
-
Manufacturer Part Number1305168
-
CountryUSA
-
MaterialSteel
-
Maximum Speed100 rpm
-
Torque Rating33530 in-lb
-
Neck Diameter13/32 in
-
Horsepower53 hp
-
Outside Diameter2-7/16 in (SHQ1)/2-5/8 in (SHR1)
-
Suitable For Use WithModel SHQ1/SHR1 Hub
- Helps prevent damage to machinery due to sudden overload by shearing a necked pin at the predetermined load
- Sprocket rotates freely after pin breakage, allowing the drive to idle
- Universal mounting
- Single position
- Reversibility and repeatability
- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Browning offers a complete set of replacement shear pins
- Durable, bright orange enamel finish for high visibility, closed grained aluminum housing,alloy steel forged cam, heavy duty needle bearings
- Shear pins are available in a wide range of minimum shear strength
-
Alternative Part Number8Q SH PIN
-
UNSPSC31161610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
