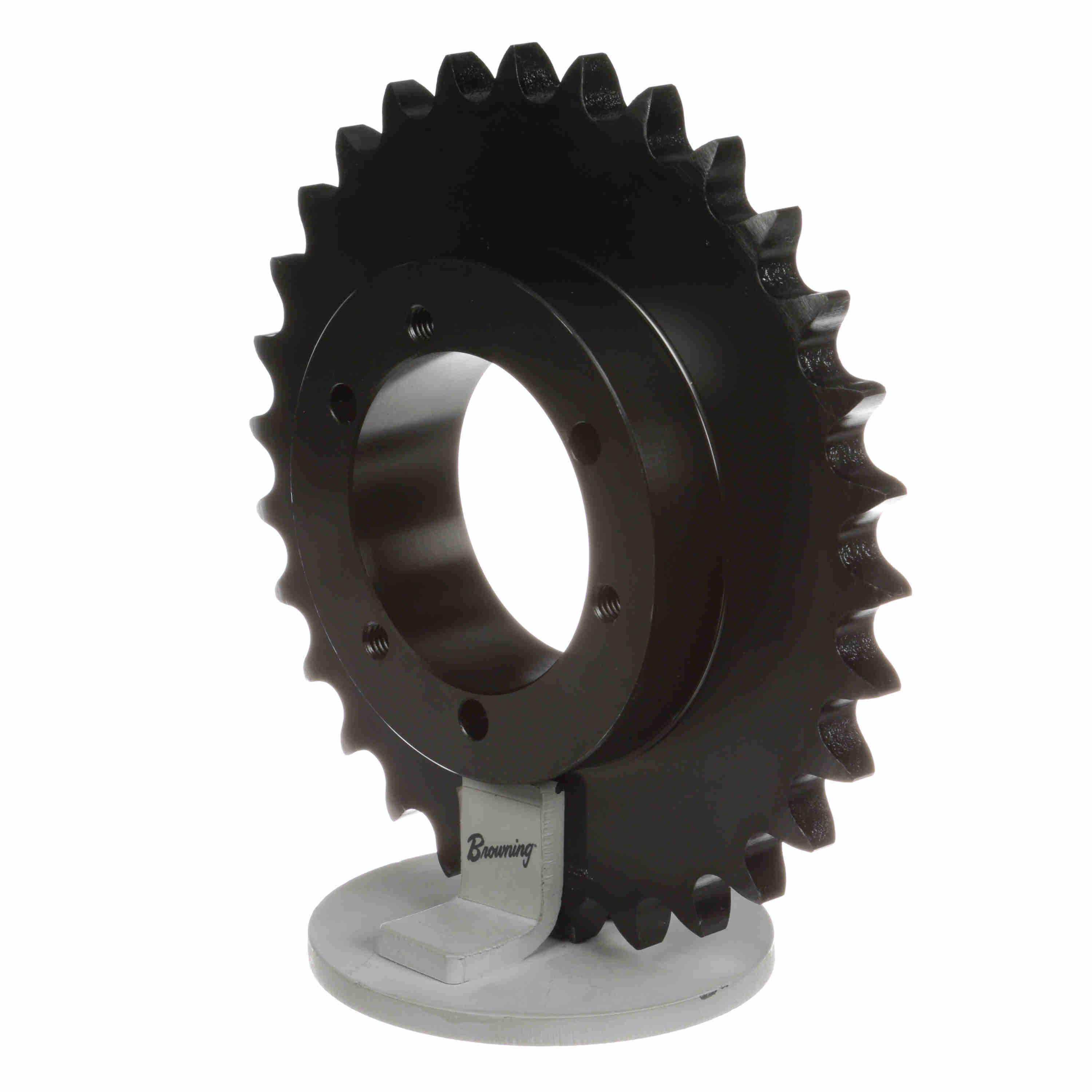

Browning 30-TOOTH BUSH #60-1 CHAIN SPROCKET BRW H-60-SK-30
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289244515
-
Manufacturer Part Number3333739
-
CountryUSA
-
Bushing TypeType SK QD®
-
Pitch3/4 in
-
Pitch Diameter7.175 in
-
MaterialSteel
-
Chain Size#60
-
TypeSingle Strand
-
Hub Diameter3.89 in
-
Number of Teeth30
-
Outside Diameter7.586 in
-
Length Through Bore1-3/4 in
-
Bore Diameter1/2 in
- This product has the Browning® exclusive twice the life guarantee
- Easy installation and removal
- Reverse mounting possible
- For use with 3/4 in pitch ANSI chain
-
Alternative Part NumberH60SK30
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
