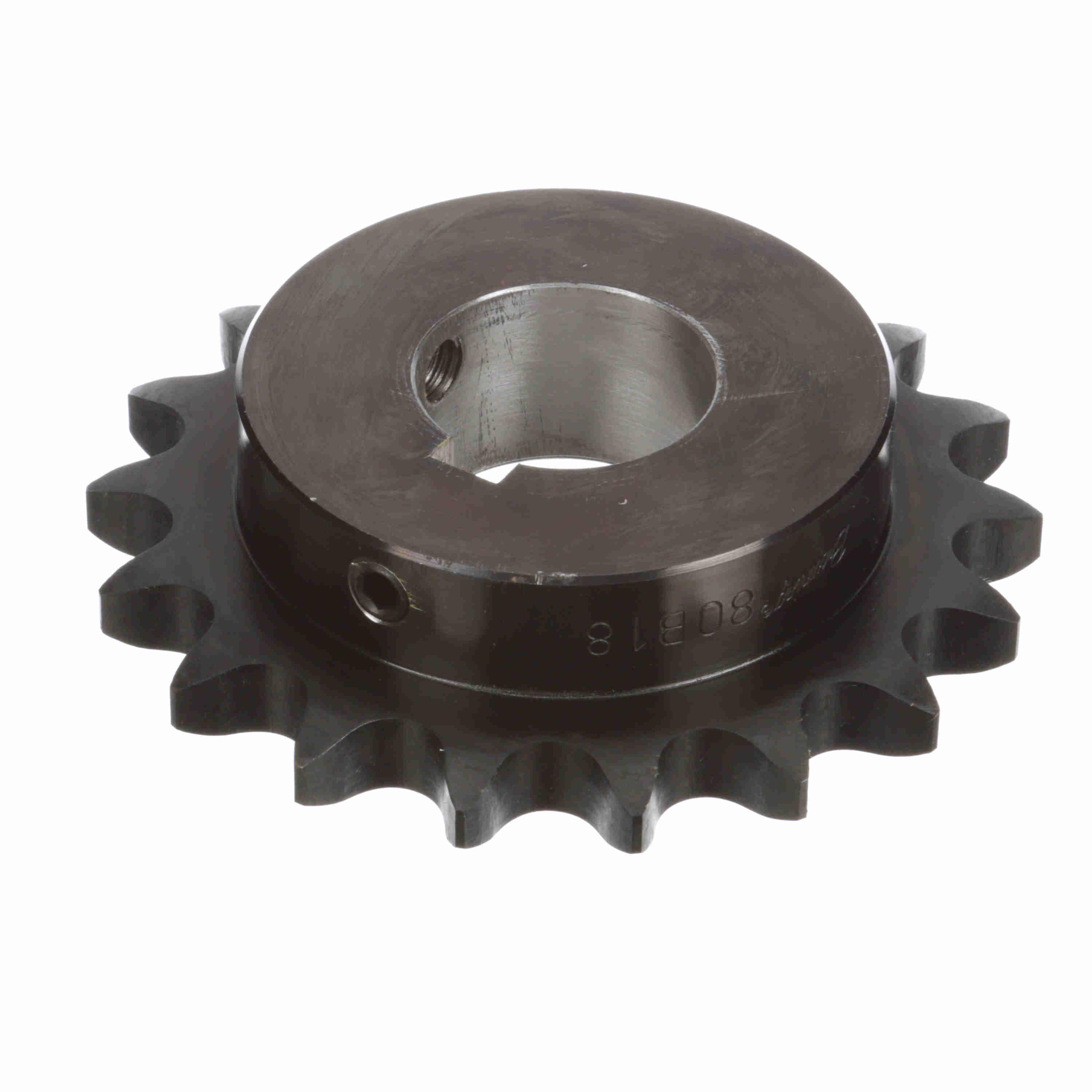

Browning® 1643113 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 1-15/16 in Dia Bore, 6.27 in OD, #80 Chain, 18 Teeth, 1 in Pitch, Steel
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289862795
-
Manufacturer Part Number1643113
-
CountryUSA
-
Pitch Diameter5.759 in
-
MaterialSteel
-
Chain Size#80
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter4.266 in
-
Number of Teeth18
-
Outside Diameter6.27 in
-
Length Through Bore1.516 in
-
Bore Diameter1-15/16 in
- This Product has the Browning Exclusive Twice the Life Guarantee
-
Alternative Part NumberH8018X 1 15/16
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
