Browning 12-TOOTH MPB #40-1 CHAIN SPROCKETS BRW 40-A-12

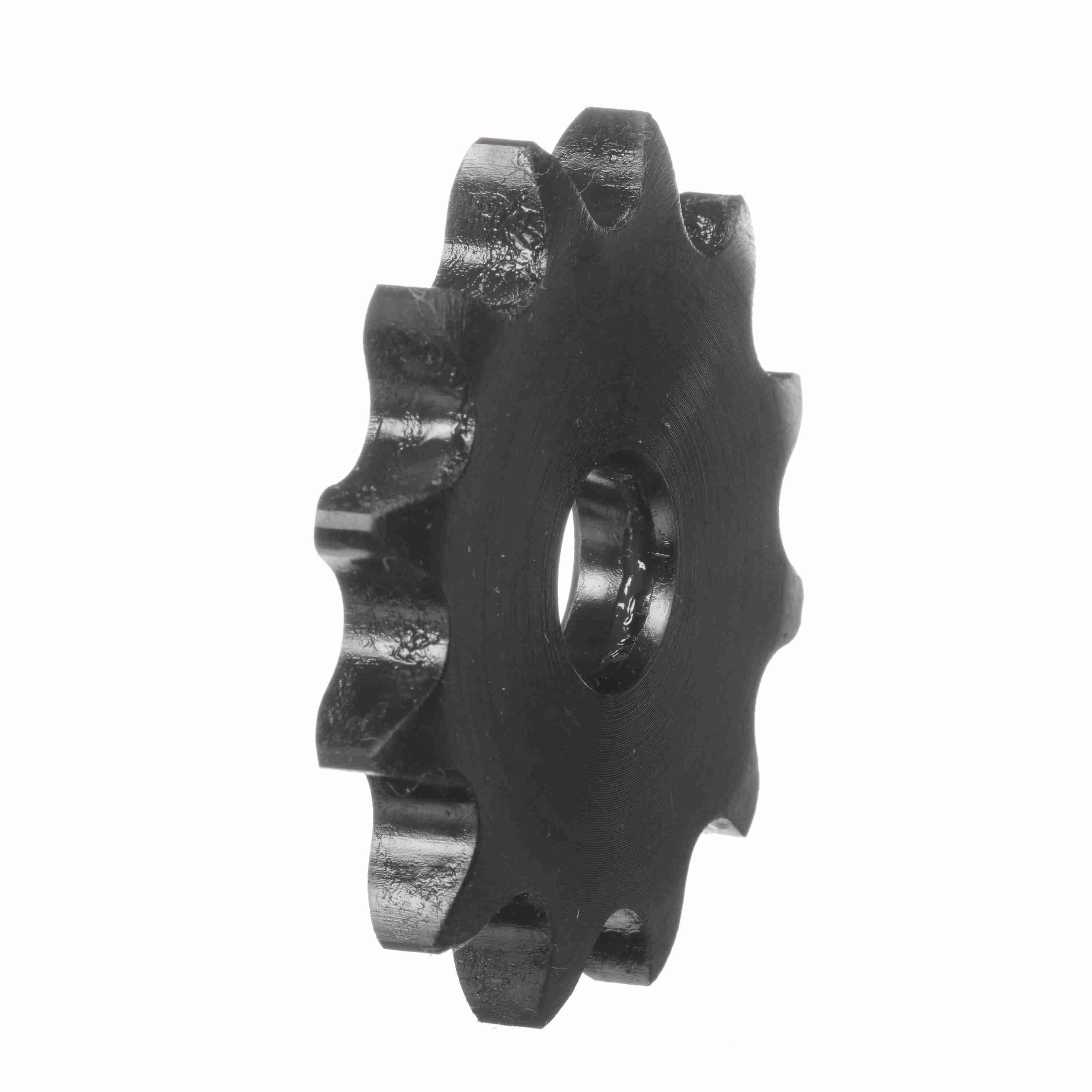

Browning® 1108158 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 1/2 in Dia Bore, 2.166 in OD, #40 Chain, 12 Teeth, 1/2 in Pitch, Steel
-
BrandBrowning®
-
UPC662289100880
-
Manufacturer Part Number1108158
-
CountryUSA
-
Pitch1/2 in
-
Pitch Diameter1.932 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand Plate Type A
-
Number of Teeth12
-
Outside Diameter2.166 in
-
Length Through Bore0.284 in
-
Bore Diameter1/2 in
- Solid plate
- No hub projection
- High quality, high carbon steel
- Browning® offers type A plate steel sprockets in single strands
- Lasts longer than sprockets made from low carbon steel
- For use with 1/2 in pitch ANSI chain
-
Alternative Part Number40A12
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
