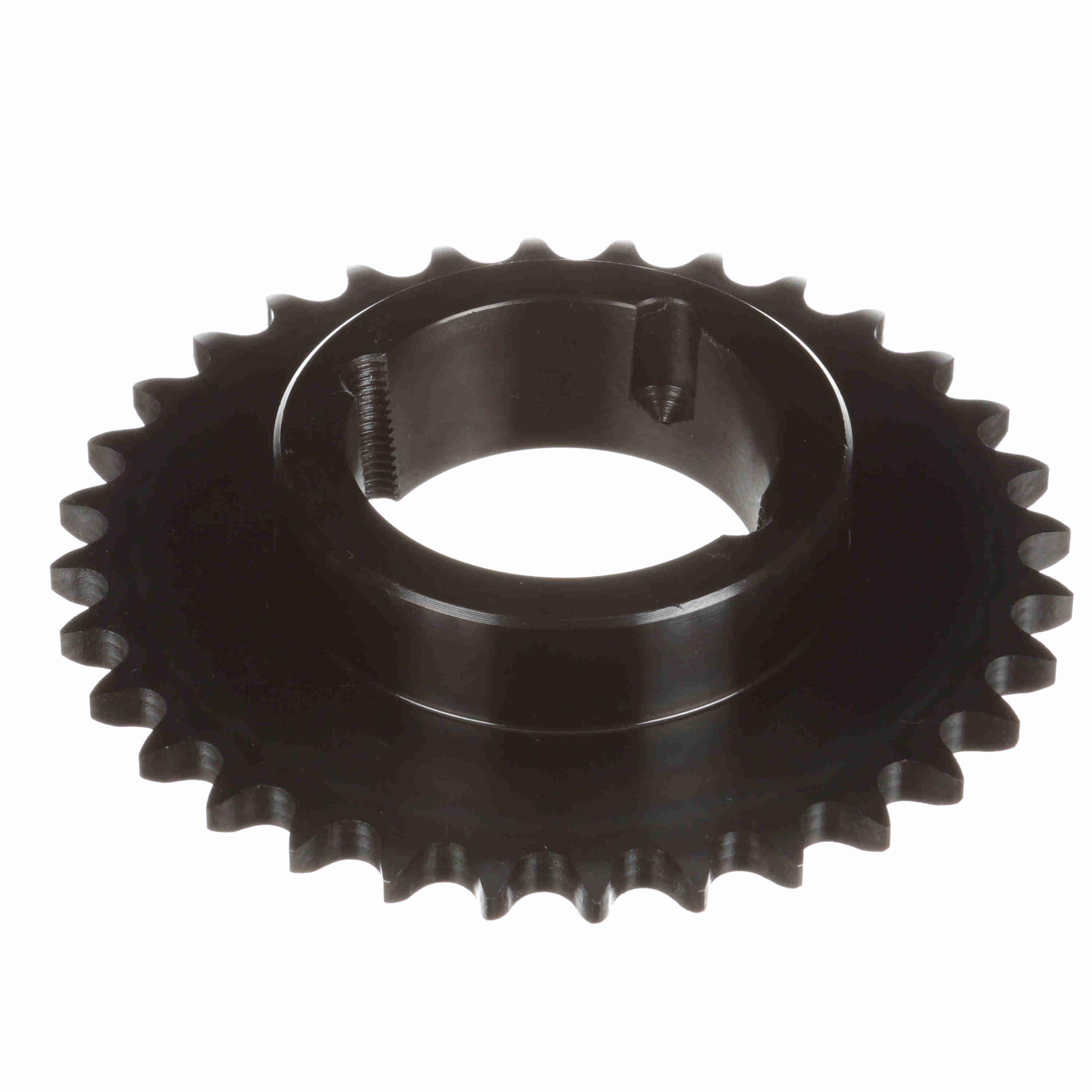

Browning® 3746526 Single Strand Roller Chain Sprocket With Hardened Teeth, 1/2 in Dia Bore, 5.377 in OD, #40 Chain, 32 Teeth, 1/2 in Pitch, Steel
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289606283
-
Manufacturer Part Number3746526
-
CountryUSA
-
Bushing TypeType 1 Taper Bore
-
Pitch1/2 in
-
Pitch Diameter5.101 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand
-
Hub Diameter3.016 in
-
Number of Teeth32
-
Outside Diameter5.377 in
-
Length Through Bore1 in
-
Bore Diameter1/2 in
- This product has the Browning® exclusive twice the life guarantee
- Compact design
- Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
- 1-11/16 in/ft taper
- Setscrew or cap screw acts as external key
- Flush fit, less space on shaft
- No protruding flange
- For use with 1/2 in pitch ANSI chain
-
Alternative Part Number40TB32
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
