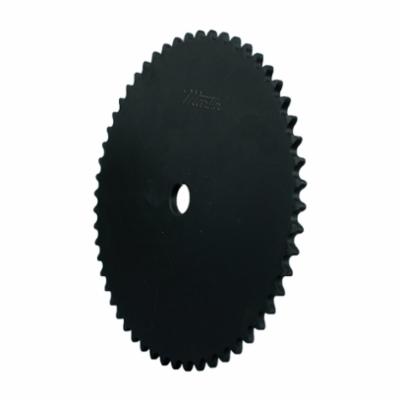

Martin 72-TOOTH #35-1 CHAIN SPROCKETS MAT 35-A-72
A plates are flat sprockets with no hub extension on either side. They can be altered for your application with bolt holes, custom bores, hardened teeth or special hubs welded to them.
-
BrandMartin
-
UPC697950002668
-
Manufacturer Part Number35A72
-
CountryUSA|Canada
-
Pitch3/8 in
-
Pitch Diameter8.597 in
-
MaterialSteel
-
Chain Size#35
-
TypeStock Bore Type A
-
Hub Diameter2-1/4 in
-
Number of Teeth72
-
Outside Diameter8.814 in
-
Length Through Bore0.168 in
-
Bore Diameter23/32 in
- Plate only
- Precise machining and processes ensure consistent finish and high quality
-
UNSPSC31171901
-
Standards/ApprovalsPROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
-
