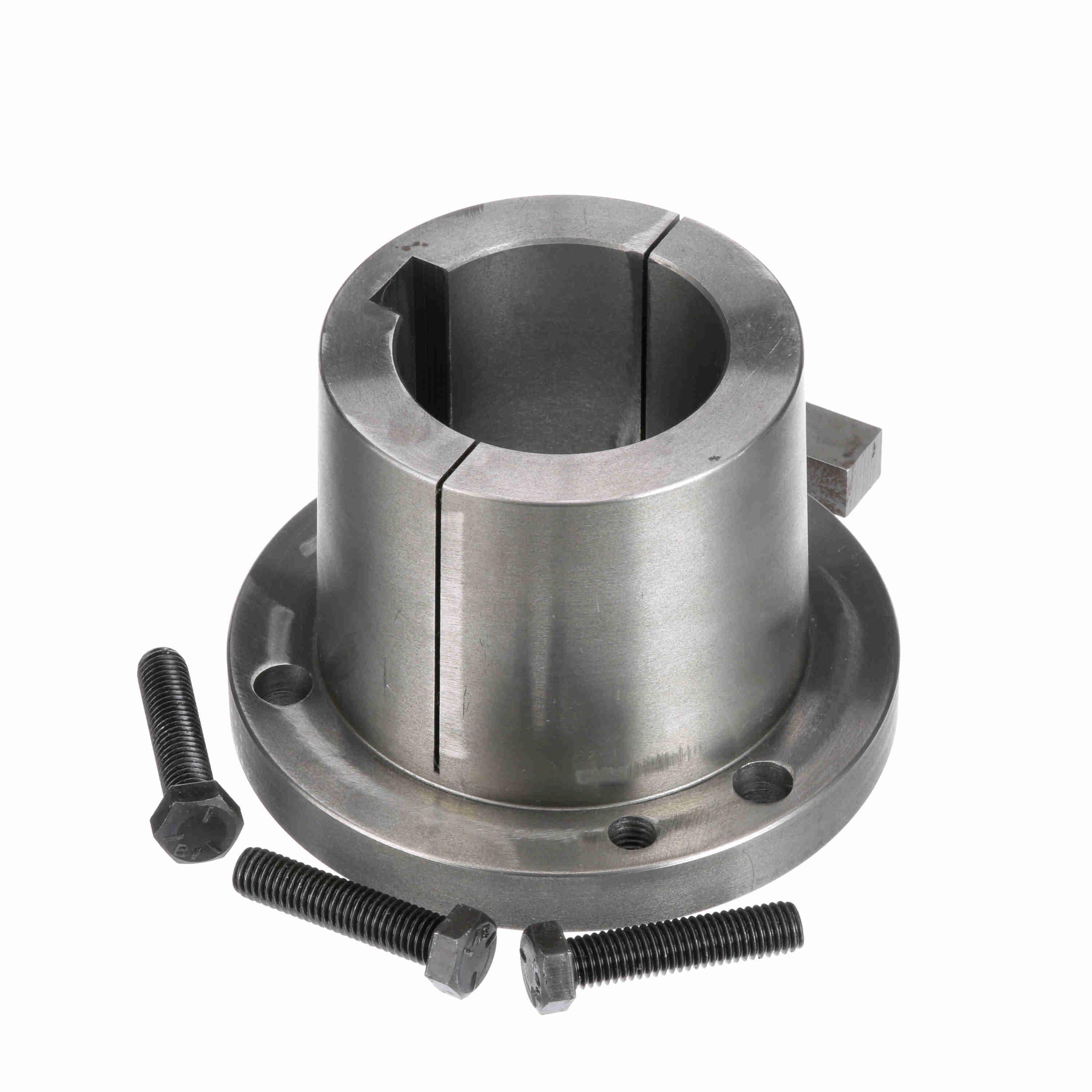

Browning® 1080050 Split Taper Bushing, 2 in Dia Bore, 4.418 in Small End/4.625 in Large End Dia Barrel, 6-3/8 in Dia Flange, 4-3/8 in OAL, Steel
External key provides positive drive with no torque on the cap screws. We offer high torque carrying capacity. Double split barrel improves true concentricity. The shaft is gripped with positive clamp fit.
-
BrandBrowning®
-
UPC662289171248
-
Manufacturer Part Number1080050
-
CountryUSA
-
MaterialSteel
-
Flange Diameter6-3/8 in
-
Flange Thickness3/4 in
-
Screw Size1/2 x 2-1/4 in
-
Number of Bolt Holes3
-
Barrel Diameter4.418 in Small End/4.625 in Large End
-
Keyway Size1/2 x 1/4 in
-
Bolt Circle Diameter5-3/8 in
-
Bore Diameter2 in
-
Overall Length4-3/8 in
-
Suitable For Use WithBrowning® Multiple Groove Sheave
- 3/4 in/ft taper on barrel, self locking taper provides the highest degree of mechanical locking product to product
- Keyed to both shaft and hub, external key provides positive drive with no torque on the cap screws
- Highest torque carrying capacity in the Browning® bushing product line
- Double split barrel assures true concentricity grips the shaft with positive clamp fit
- Cast iron
-
Alternative Part NumberS1 2
-
UNSPSC31171605
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
