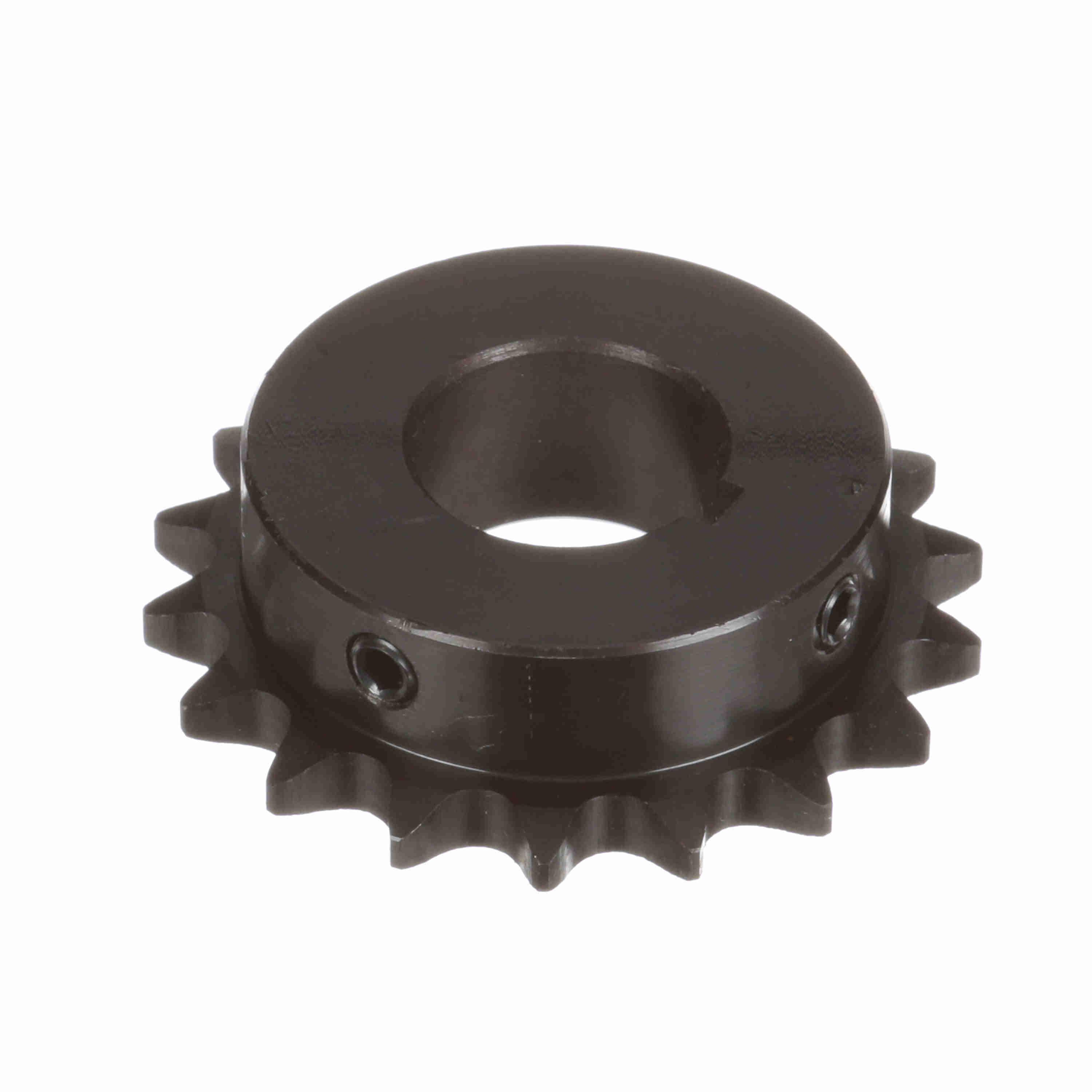

Browning 18-T SPROCKETS FOR #40 CHAIN BRW H-4018 X 1-7/8
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289173204
-
Manufacturer Part Number1128313
-
CountryUSA
-
Pitch Diameter2.879 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter2.391 in
-
Number of Teeth18
-
Keyway Size1/4 x 1/8 in
-
Outside Diameter3.14 in
-
Length Through Bore1 in
-
Bore Diameter1-1/8 in
- This Product has the Browning Exclusive Twice the Life Guarantee
-
Alternative Part NumberH4018X 1 1/8
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Catalog
