TsubakiĀ® DS40A15 Type A Double Single Roller Chain Sprocket, 1/2 in Dia Bore, 2.65 in OD, 40 Chain, 15 Teeth, 1/2 in Pitch, Carbon Steel
This type of sprocket is commonly used in applications where two or more items are powered by a common drive shaft. The space between the sprocket plates is wider than a multi-strand sprocket and allows two separate strands of chain to engage without contacting each other. With this type of sprocket, one strand of chain may exit in a different direction than the other. For example, one strand exiting towards the ceiling and the other running parallel to the floor.
-
BrandTsubakiĀ®
-
UPC097039369697
-
Manufacturer Part NumberDS40A15
-
CountryUSA
-
Pitch1/2 in
-
Pitch Diameter2.405 in
-
MaterialCarbon Steel
-
Chain Size40
-
TypeType A
-
Screw Size10-24
-
Number of Teeth15
-
Keyway Size1/8 x 1/16 in
-

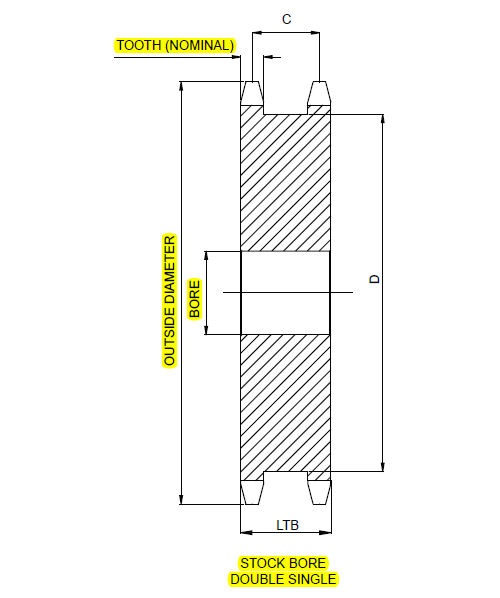

Outside Diameter2.65 in
-
Length Through Bore1.406 in
-
Bore Diameter1/2 in
-
UNSPSC31171901
-
Standards/ApprovalsISO 9001:2000|ISO 14001 Certified
-
WarrantyLimited
-
Catalog
-
Specification Sheet
