Tsubaki® DS80ATL17 Type A Double Single Roller Chain Sprocket, 2-1/2 in Dia Bore, 5.95 in OD, 80 Chain, 17 Teeth, 1 in Pitch, Carbon Steel

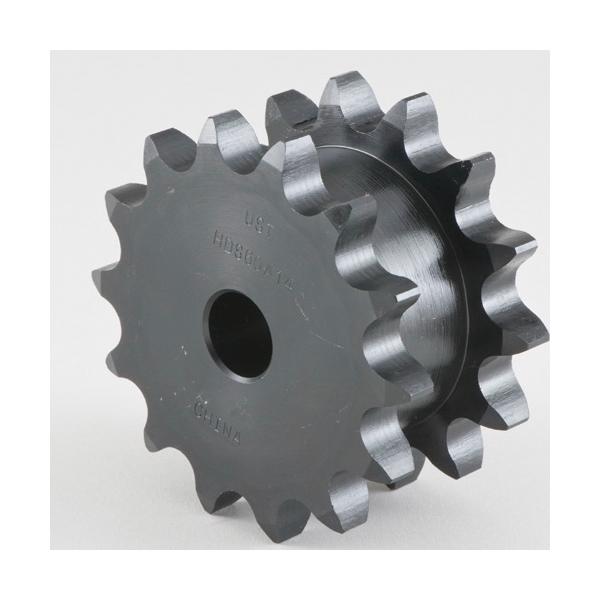

This type of sprocket is commonly used in applications where two or more items are powered by a common drive shaft. The space between the sprocket plates is wider than a multi-strand sprocket and allows two separate strands of chain to engage without contacting each other. With this type of sprocket, one strand of chain may exit in a different direction than the other. For example, one strand exiting towards the ceiling and the other running parallel to the floor.
-
BrandTsubaki®
-
UPC097039370419
-
Manufacturer Part NumberDS80ATL17
-
CountryUSA
-

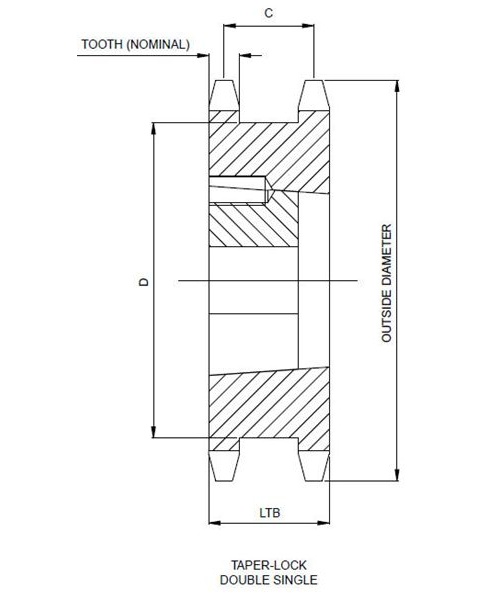

Bushing Type2517 Taper Lock
-
Pitch1 in
-
MaterialCarbon Steel
-
Chain Size80
-
TypeType A
-
Screw Size5/8 in
-
Number of Teeth17
-
Keyway Size5/8 x 5/16 in
-
Outside Diameter5.95 in
-
Length Through Bore2.188 in
-
Bore Diameter2-1/2 in
-
UNSPSC31171901
-
WarrantyLimited
-
Specification Sheet
-
Catalog
