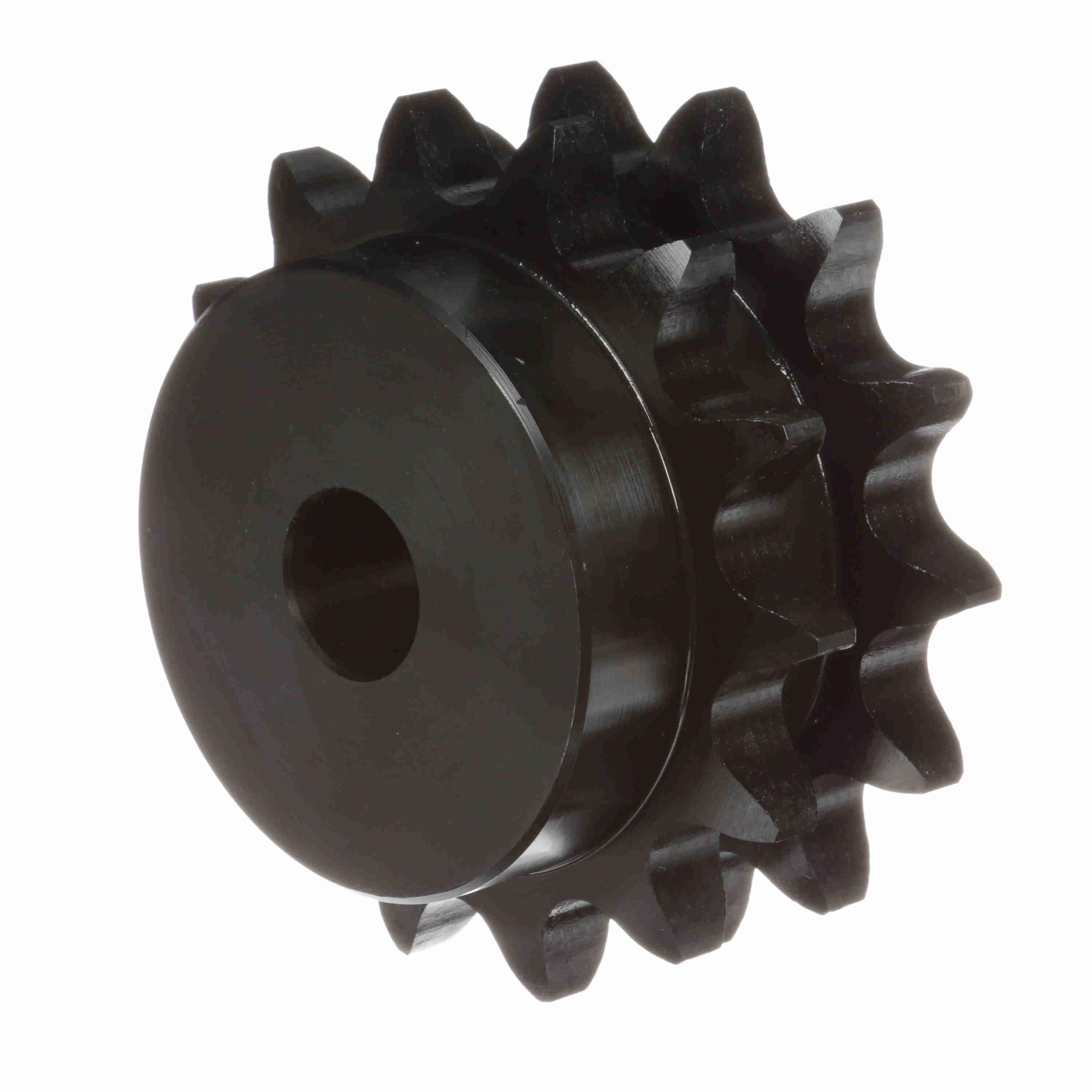

Browning® 1126408 Double Strand Minimum Bore Type B Roller Chain Sprocket With Hardened Teeth, 1 to 2-3/8 in Dia Bore, 4.98 in OD, 80 Chain, 14 Teeth, 1 in Pitch, Steel
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289132836
-
Manufacturer Part Number1126408
-
CountryUSA
-
Pitch Diameter4.494 in
-
MaterialSteel
-
Chain Size80
-
TypeDouble Strand Minimum Bore Type B
-
Hub Diameter3-15/32 in
-
Number of Teeth14
-
Outside Diameter4.98 in
-
Length Through Bore2-1/2 in
-
Bore Diameter1 to 2-3/8 in
- Larger hub diameter allows larger bore capacity
- Maximum bore shown will accommodate standard keyways and setscrews over keyway
- Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
- Hub projection on one side
- High quality, high carbon steel
- Lasts longer than sprockets made from low carbon steel
- Large hub diameters, provides flexibility when reboring
- For use with 1 in pitch ANSI chain
-
Alternative Part NumberD80B14
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
