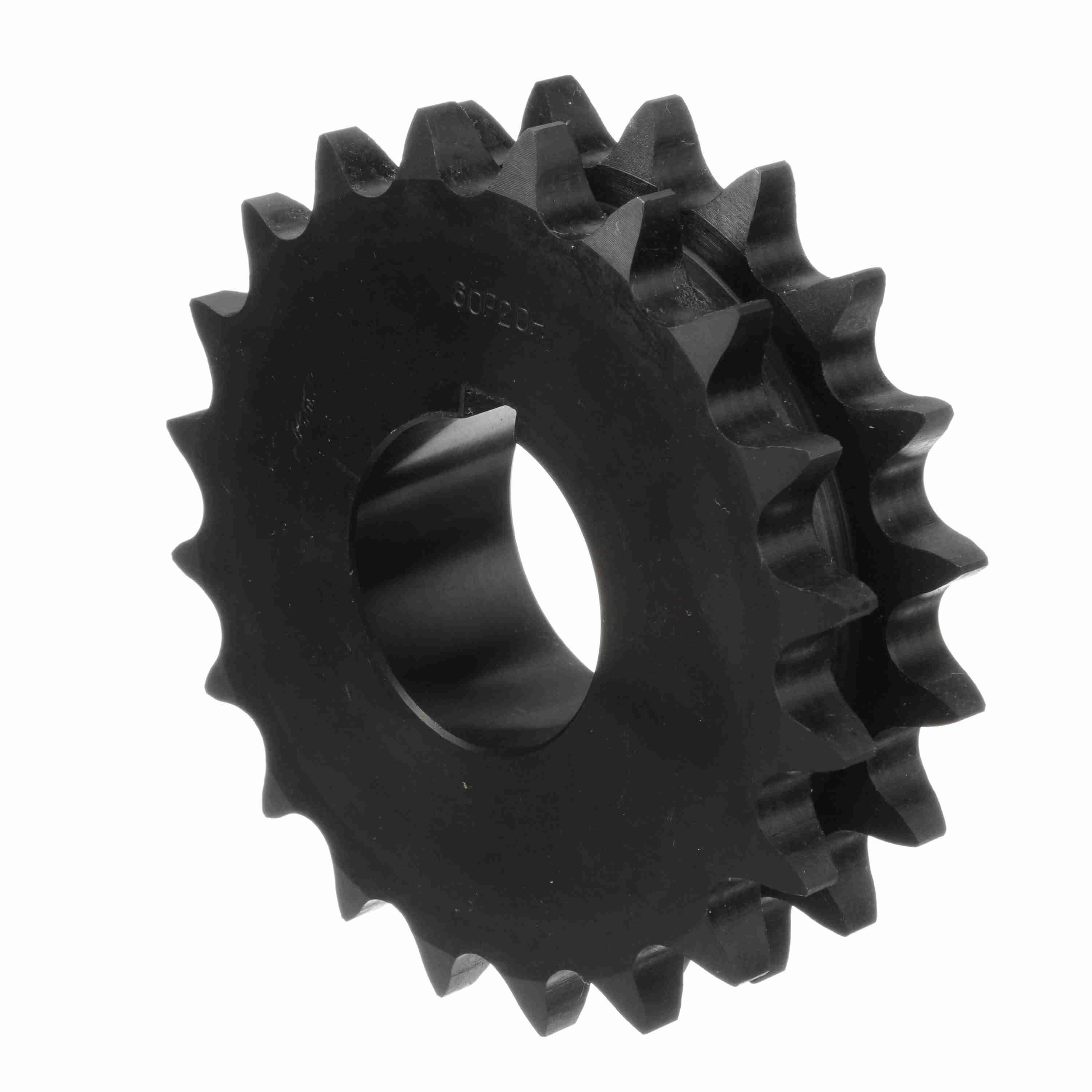

Browning 20-TOOTH #60-2-CHAIN DBL/SPROCKETS BRW D-60-P-20
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289289332
-
Manufacturer Part Number1174655
-
CountryUSA
-
Pitch Diameter4.794 in
-
MaterialSteel
-
Chain Size60
-
TypeDouble Strand Type 13
-
Hub Diameter3 in
-
Number of Teeth20
-
Outside Diameter5.185 in
-
Length Through Bore2.1657 in
-
Bore Diameter1/2 to 1-3/4 in
- This product has the Browning® exclusive twice the life guarantee
- Hardened teeth at no extra cost, drives sizes up to 30 teeth on 35 through 160 chain
- External key, higher torque capacity, aligns bolt holes
- Provides key to key drive
- Double split barrel, improved clamping
- Solid flange, true concentricity, easy installation
- Longer barrel, better support on the shaft
- For use with 3/4 in pitch ANSI chain
- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Split Taper Bushing are available in popular Inch, Metric and Spline bore
-
Alternative Part NumberD60P20
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
