Browning 1-GRV 7/8"-ID A OR B-BELT SHEAVES BRW BK-28 X 7/8

0 Ratings
$23.85
In Stock
SKU: BRWBK28X7/8
noimage_new

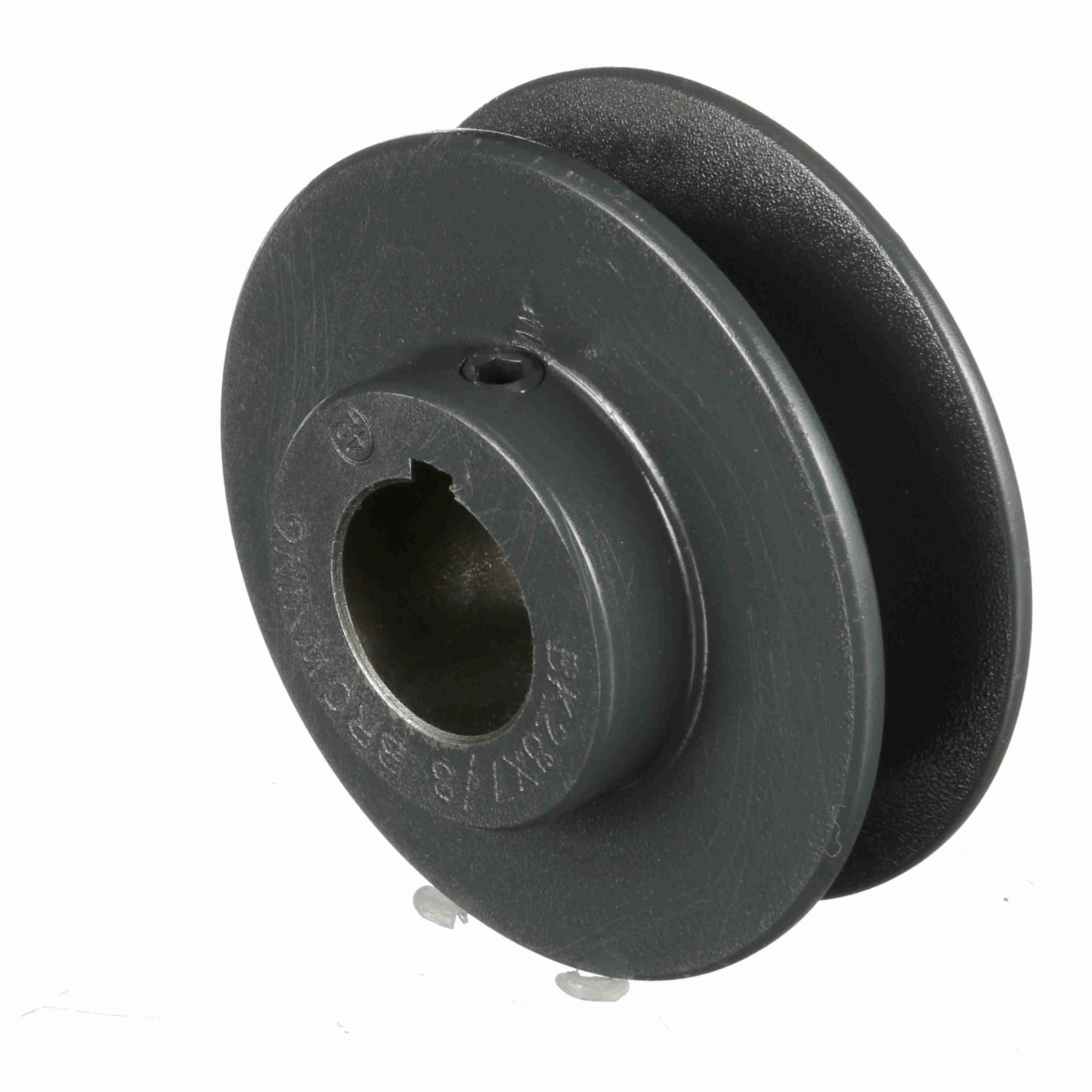

Browning® Classical Gripbelt® 1027986 BK Series Type 2 Single Groove Sheave, Finished Bore, 7/8 in Dia Bore, 2.95 in OD, 2.4 in (A)/2.9 in (B) Dia Pitch, 13/16 in W Face

In Stock
HCI of Jackson: 7
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Main specs
  • Brand
    Browning®
  • UPC
    662289315277
  • Manufacturer Part Number
    1027986
  • Country
    USA
Specification
  • Face Width
    13/16 in
  • Pitch Diameter
    2.4 in (A)/2.9 in (B)
  • Material
    Cast Iron
  • Type
    Type 2
  • Series
    BK Series
  • Hub Projection
    13/32 in
  • Outside Diameter
    2.95 in
  • Bore Diameter
    7/8 in
  • Bore Type
    Finished
  • Overall Length
    1-7/32 in
  • Suitable For Use With
    4L/A and 5L/B Cross Section Belt
Features
  • Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
  • 1 and 2 Grooves are available to meet any fractional horsepower requirement
  • Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Tighter tolerances by 25%
  • Twice balanced after assembly
  • Tightened micro-finish on groove walls for increased belt life
  • Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
  • 1 and 2 Grooves are available to meet any fractional horsepower requirement
  • Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
  • Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
  • Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
Additional Information
  • Alternative Part Number
    BK28X7/8
  • UNSPSC
    24101610
  • Package Description
    EACH
  • Warranty
    1 Year
