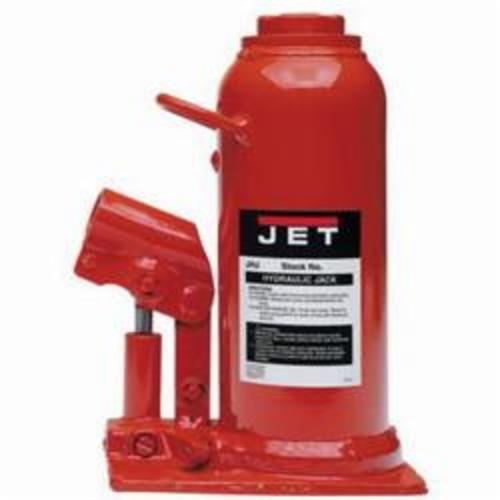

5-TON JHJ-5 HYDRAULIC BOTTLE JACKS JET453305
JETĀ®JHJ series hydraulic bottle jacks have capacities from 2 to 100 tons and are available in standard and low profile heights. The pump piston and ram are chrome plated for added corrosive resistance increasing durability. Each JHJ model functions in upright, angled or horizontal positions for increased versatility.
-
BrandJETĀ®
-
UPC662755103124
-
Manufacturer Part NumberJT9-453305
-
CountryUSA
-
Load Capacity5 ton
-
Piston Stroke4-5/8 in
-
Maximum Height15-1/2 in
-
Minimum Height7-7/8 in
-
TypeHeavy Duty
-
Screw Length2-3/4 in
-
SeriesJHJ
-
Base Length5-5/8 in
-
Base Width3-1/4 in
- Precision machined and polished cylinders provide non-abrasive, leak-free, durable performance
- Heavy duty bases are electrically welded providing a stable platform
- Hydraulic system is protected from damage by internal by-pass mechanism
- Chrome plated piston and ram are corrosion resistant for use in any industrial environment
- Industrial duty construction permits use in extreme climates
- Upright, horizontal or angled operating positions increase versatility
| Competitor Name | Cross-Reference Number |
|---|---|
| MSC | 91219188 |
-
Alternative Part Number453305
-
UNSPSC24101612
-
Standards/ApprovalsANSI/ASME B30.1|PALD-1
-
Specification Sheet
-
Owners/User Manual
