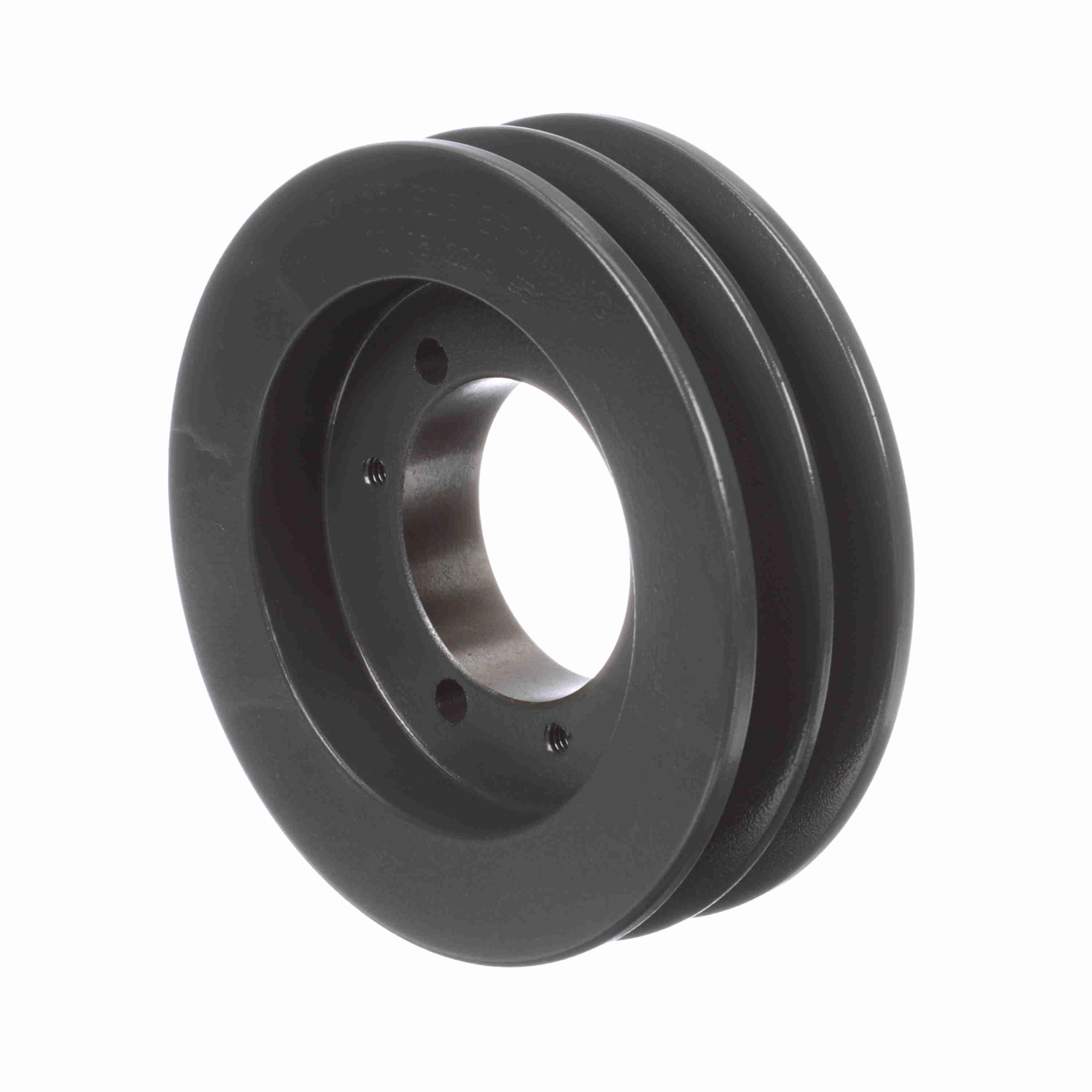

Browning® 3050036 Multiple Sheave, 1/2 to 2 in QD® Bore, 5-1/2 in OD, 2 Grooves, 5.4 in Dia Pitch, 1-11/16 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289468973
-
Manufacturer Part Number3050036
-
CountryUSA
-
Face Width1-11/16 in
-
Bushing TypeSDS
-
Pitch Diameter5.4 in
-
MaterialCast Iron
-
Hub Projection0.04375 in
-
Number of Grooves2
-
Outside Diameter5-1/2 in
-
Bore Diameter1/2 to 2 in
-
Bore TypeQD®
-
Overall Length1.73125 in
-
Suitable For Use With5V-Cross Section V-Belts
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number25V550SDS
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
