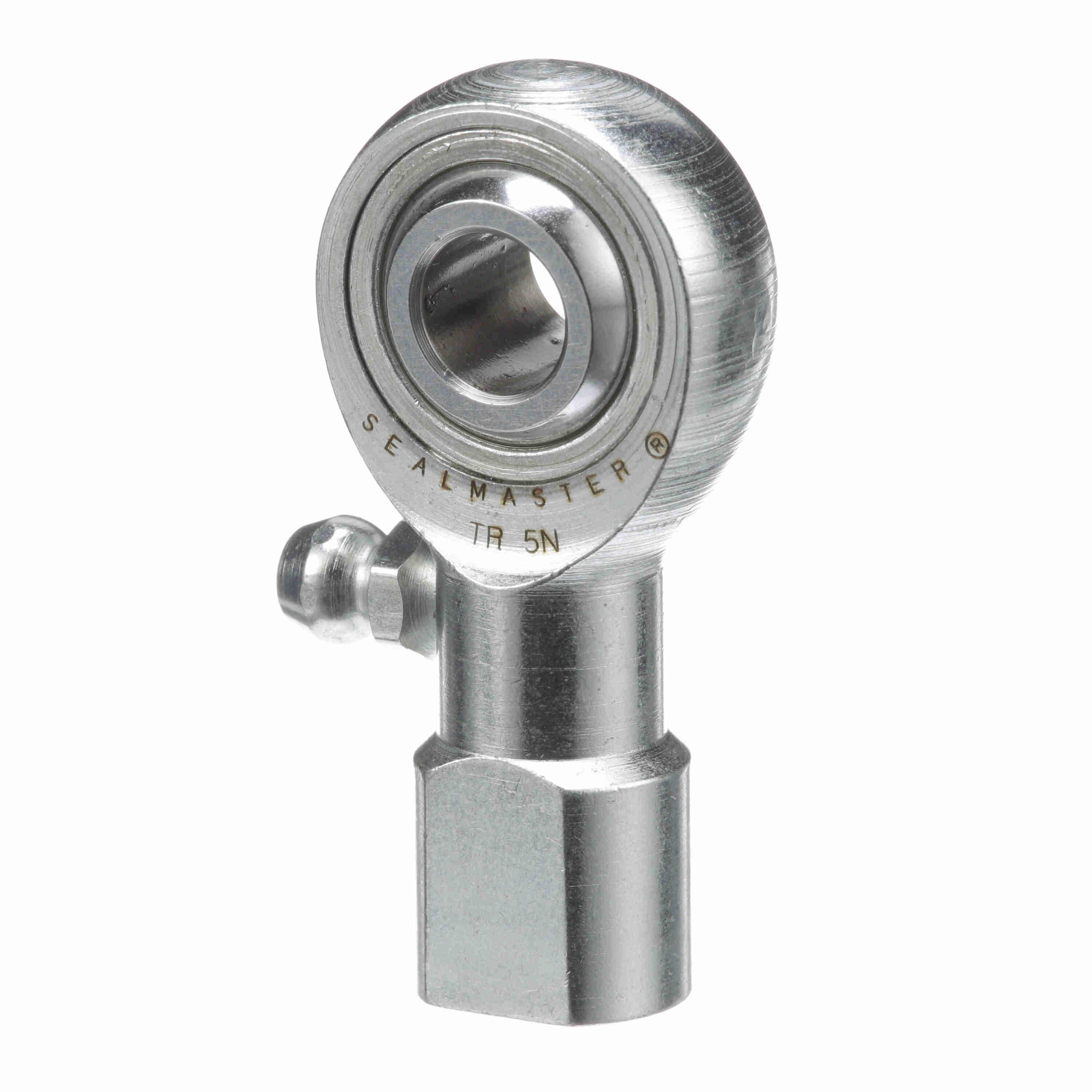

Sealmaster 5/16" ROD ENDS SEA TR-5-N
Sealmaster® two and three piece rod end bearing housing designs have been optimized for overall strength. This housing advantage and variety of outer race materials including brass, steel, Delrin® and PTFE liners provide a wide selection of application solutions. Sealmaster® rod end bearings can be joined together or connected with a threaded rod or tube as linkage assemblies for flexibility in motion transfer. In addition Sealmaster® rod end bearings can accommodate angular misalignment to provide ease in assembly and smooth motion transfer in a variety of applications.
-
BrandSealmaster®
-
UPC662288719854
-
Manufacturer Part Number1410501000
-
CountryUSA
-
Load Capacity3350 lb Static
-
Temperature Rating350 deg F
-
MaterialCarbon Steel
-
Thread Size5/16-24 Dia x 0.719 in L
-
Thread TypeFemale UNF
-
Type3-Piece Precision Grade General Purpose
-
Width0.437 in
-
SeriesTR-N
-
Outside Diameter7/8 in
-
Bore Diameter5/16 in
- 3-piece construction to help reduce pound-out in applications with high frequency oscillation, vibration or shock loading
- 1-piece carbon steel outer race with protective coating for corrosion resistance
- Alloy steel heat treated and chrome plated ball for wear resistance properties
- Wrench flat on female rod ends facilitates assembly
- Right hand internal thread
- Female External Threads
-
Alternative Part NumberTR 5N
-
UNSPSC31171508
-
Package DescriptionEACH
-
