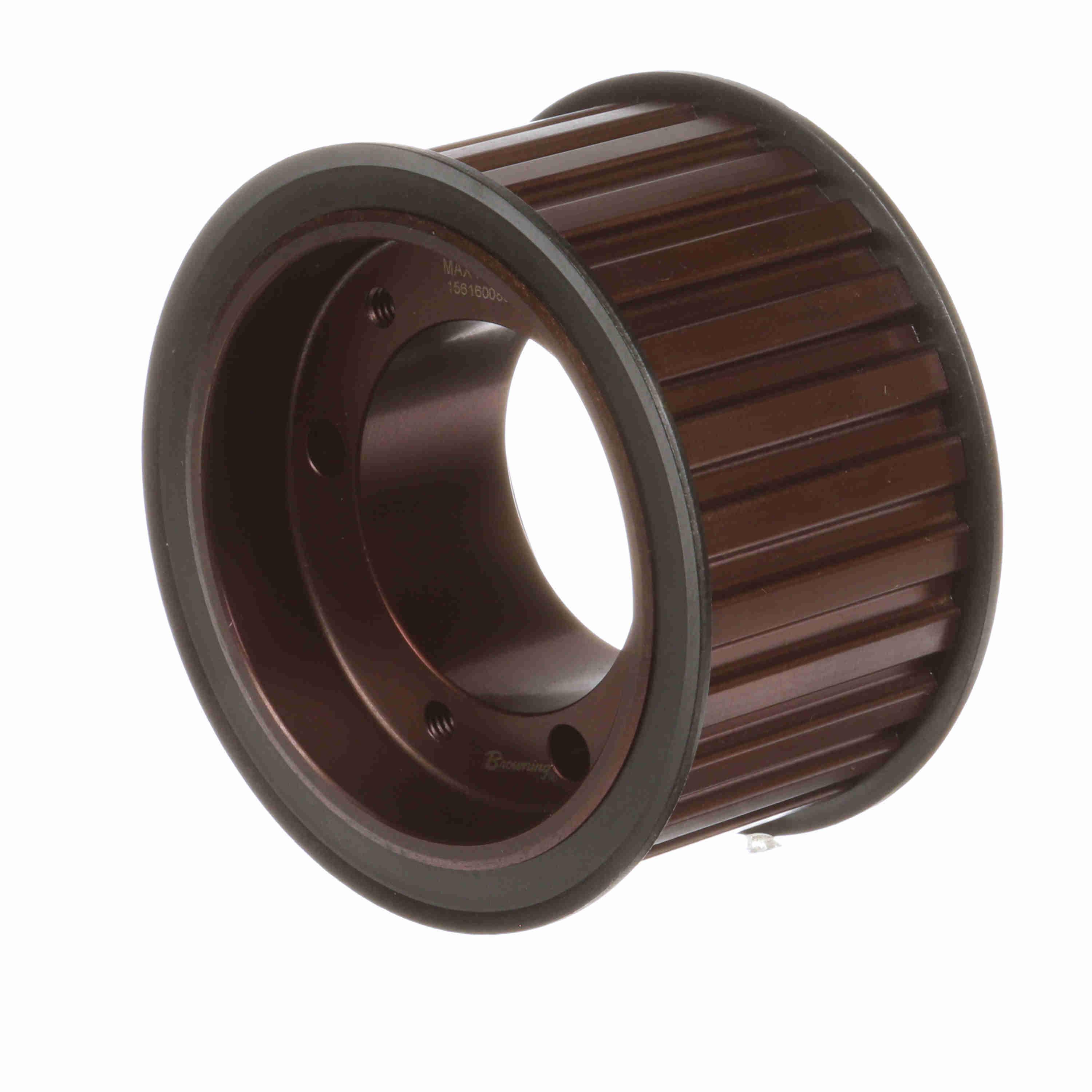

Browning® Gearbelt® 3514148 Solid Type DF Synchronous Timing Pulley With Flange, 1/2 to 2 in QD® Bore, 4.138 in OD, 26 Grooves, 4.138 in Dia Pitch, 2-11/32 in W Face
Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.
-
BrandBrowning®
-
UPC662289348541
-
Manufacturer Part Number3514148
-
CountryUSA
-
Face Width2-11/32 in
-
Bushing TypeSD
-
Pitch1/2 in
-
Pitch Diameter4.138 in
-
Flange Diameter4-3/8 in
-
TypeSolid Type DF
-
Number of Grooves26
-
Outside Diameter4.138 in
-
Bore Diameter1/2 to 2 in
-
Bore TypeQD®
-
Overall Length2.45 in
-
Suitable For Use With2 in W Type H200 Belt
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
-
Alternative Part Number26H200SD
-
UNSPSC26111807
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
