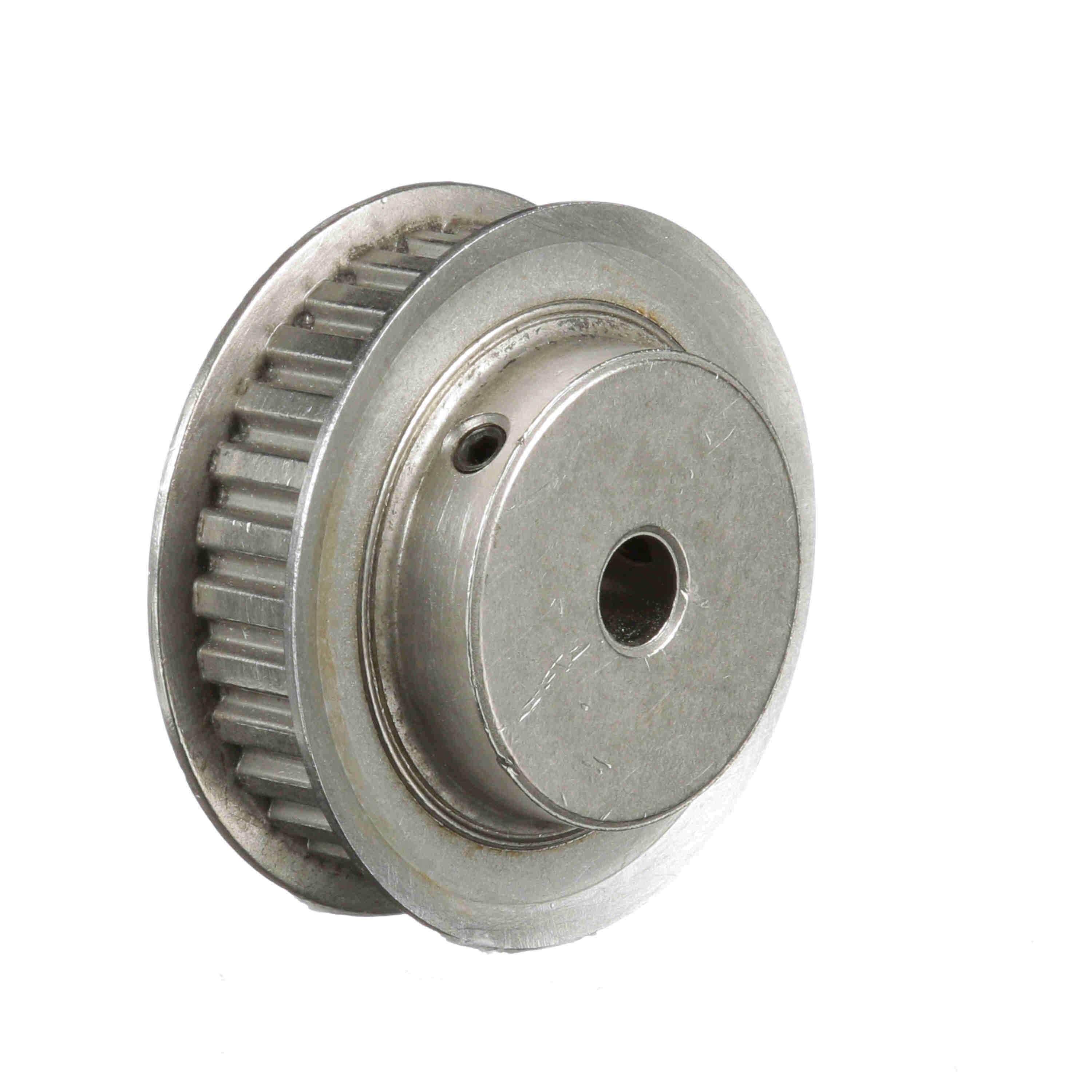

Browning® Gearbelt® 1430875 Type 2A Synchronous Timing Pulley Without Flange, 5/16 to 1 in Bore, 2.781 in OD, 44 Grooves, 2.801 in Dia Pitch, 9/16 in W Face
Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.
-
BrandBrowning®
-
UPC662289753987
-
Manufacturer Part Number1430875
-
CountryUSA
-
Face Width9/16 in
-
Bushing TypeMPB
-
Pitch1/5 in
-
Pitch Diameter2.801 in
-
MaterialSteel
-
TypeType 2A
-
Hub Diameter1-1/2 in
-
Hub Projection7/16 in
-
Number of Grooves44
-
Outside Diameter2.781 in
-
Bore Diameter5/16 to 1 in
-
Overall Length1 in
-
Suitable For Use With3/8 in W XL Type Belt
- Constant speed, no slip, no creep, minimum backlash, because of the positive grip of the belt teeth with pulley grooves
- High modulus strength member, needs minimum take-up
- Freedom from initial belt tension, reduces bearing loads, increases life
- Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
- Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Wide belt speed range
-
Alternative Part Number44XLB037S
-
UNSPSC26111807
-
Package Description1/PK
-
Warranty1 Year
-
Catalog
-
Instruction/Installation Manual
