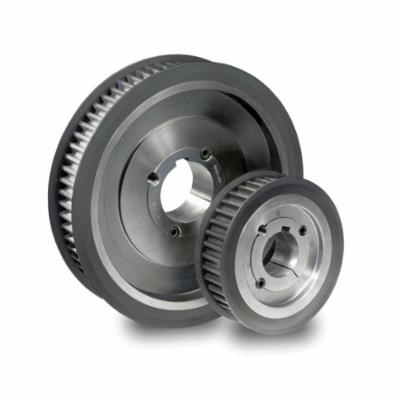

TL30H100-2012 Dodge® 113620 Dyna-Sync Type KF1 Timing Belt Pulley, 1/2 to 2-1/8 in Taper-Lock® Bore, 5.02 in OD, 30 Grooves, 4.775 in Dia Pitch, 1.32 in W Face
TL30H100-2012 Dodge® 113620 Dyna-Sync Type KF1 Timing Belt Pulley, 1/2 to 2-1/8 in Taper-Lock® Bore, 5.02 in OD, 30 Grooves, 4.775 in Dia Pitch, 1.32 in W Face
-
BrandDodge®
-
UPC782475088409
-
Manufacturer Part Number113620
-
CountryUSA
-
Face Width1.32 in
-
Bushing Type2012
-
Pitch1/2 in
-
Pitch Diameter4.775 in
-
Flange Diameter5.02 in
-
TypeDyna-Sync Type KF1
-
Hub Projection0.06 in
-
Number of Grooves30
-
Outside Diameter5.02 in
-
Bore Diameter1/2 to 2-1/8 in
-
Bore TypeTaper-Lock®
- Synchronized and no-slip transmission
- No lubrication required
- Approximately 98% efficiency can obtained
- Low maintenance
- Virtually no backlash
- Constant linear velocity
- 8.5:1 drive ratio
- Easy On/Off operation
- Flange design standard on drive size
-
Alternative Part NumberTL30H100-2012
-
UNSPSC26111807
-
Instruction/Installation Manual
-
Specification Sheet
