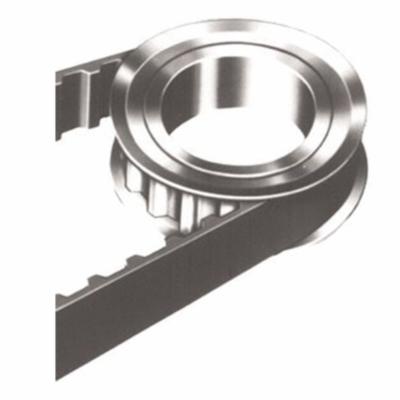

Gates® Power Transmission PowerGrip® PB32MXL025 Mini Extra Light Duty Timing Pulley With Set Screws, 1/4 to 1/4 in Dia Bore, 0.795 in OD, 32 Grooves, 0.815 in Dia Pitch, 0.389 in W Face
PowerGrip Pulleys provide optimum performance for all constructions of PowerGrip GT, PowerGrip HTD and PowerGrip Timing belts._x000D_
-
BrandGates® Power Transmission
-
UPC072053130843
-
Manufacturer Part NumberPB32MXL025
-
CountryUSA|Canada
-
Face Width0.389 in
-
Bushing TypeMPB
-
Pitch2/25 in
-
Pitch Diameter0.815 in
-
FinishGold Anodize
-
MaterialAluminum
-
Flange Diameter1 in
-
TypeMini Extra Light Duty
-
Series7826
-
Hub Diameter0.598 in
-
Number of Grooves32
-
Outside Diameter0.795 in
-
Bore Diameter1/4 to 1/4 in
-
Overall Length0.688 in
-
Suitable For Use With1/8 in, 3/16 in and 1/4 in W PowerGrip® Timing Belts
- Full split in bushing allows easy installation and removal
- Precise sprocket design produces positive, press fit to shaft
- Precision manufactured and static balanced to eliminate sprocket wobble
-
Alternative Part Number78260132
-
UNSPSC26111807
-
Package DescriptionEACH
-
Catalog
-
Specification Sheet
