Dormont® SafetyShield® 0240687 20C, 20C-3132-36B Gas Connector, 3/8 in Nominal, MNPT x FNPT End Style, 71000 Btu/hr Natural Gas, 113760 Btu/hr Liquid Propane Flow Rate, 36 in L, 304 Stainless Steel

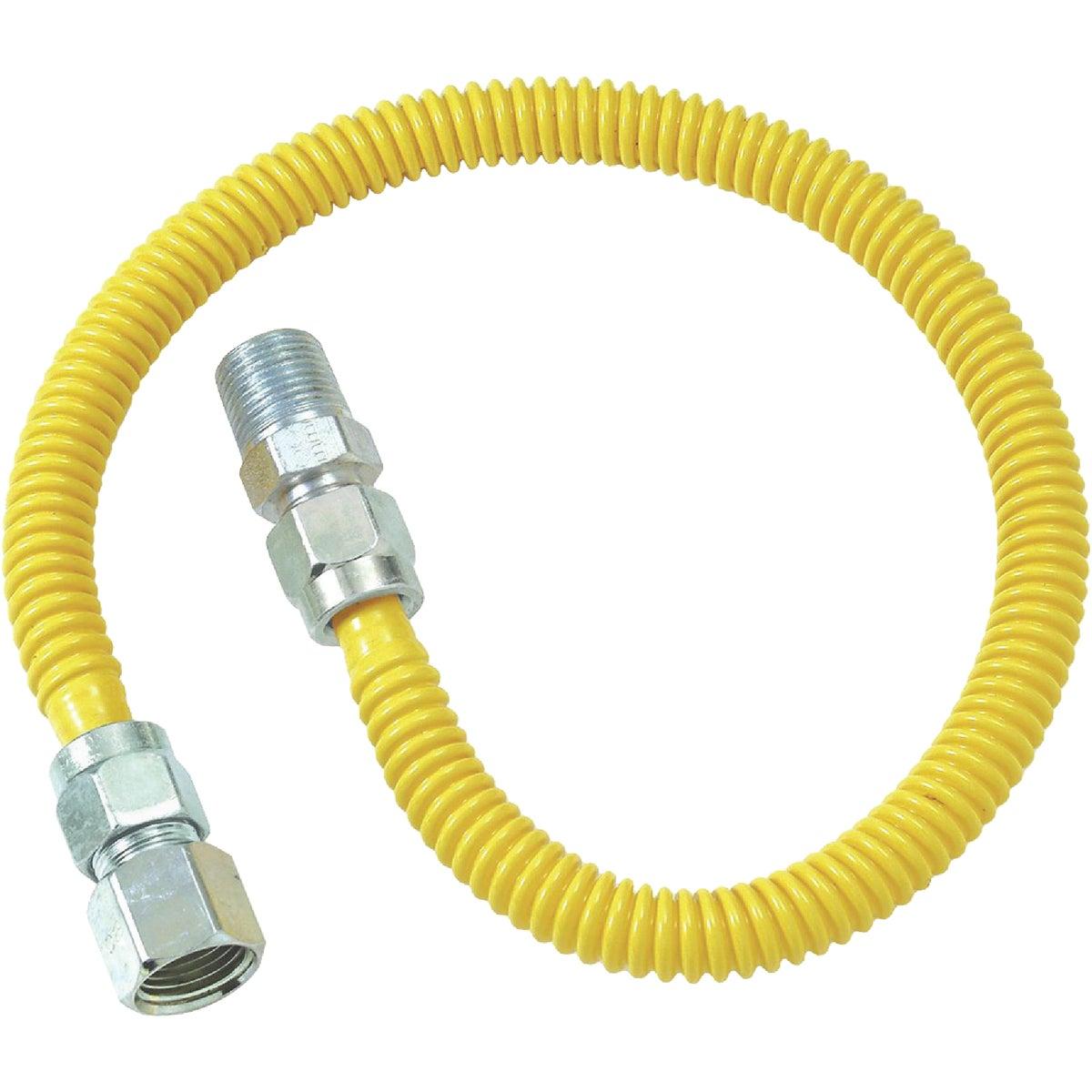

This 1/2 inch OD, 3/8 inch ID, durable, corrosion resistant stainless steel gas connector is configured with 1/2 inch MIP x 1/2 inch FIP adapters and is 36 inches in length. This CSA approved SafetyShield(R) gas connector features a premium antimicrobial coating to inhibit bacteria growth, improve corrosion and UV protection, and enhance flame and smoke resistance. The yellow coating is an industry recognized color for gas lines and provides extra corrosion protection from accidental contact with harmful chemicals that may be found in household products. It is commonly used for the installation of home appliances such as gas dryers and water heaters. Item comes in a bag.
-
BrandDormont®
-
UPC662447099261
-
Manufacturer Part Number0240687
-
CountryUSA
-
FinishYellow Coated
-
Material304 Stainless Steel
-
Flow Rate71000 Btu/hr Natural Gas, 113760 Btu/hr Liquid Propane
-
Nominal Size3/8 in
-
Series20C
-
Outside Diameter1/2 in
-
Length36 in
-
End StyleMNPT x FNPT
- Designed for indoor and outdoor use
- Premium antimicrobial coating for increased safety, durability, and longevity
- 100 Percent factory leak tested
| Cross-Reference Number |
|---|
| 401447 |
-
Alternative Part Number20C-3132-36B
-
UNSPSC40141720
-
Package DescriptionEACH
-
Standards/ApprovalsANSI Z21.24/CSA 6.10|ANSI Z21.75/CSA 6.27|ASTM A240|cSAus Certified|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
-
WarrantyLimited
-
Specification Sheet
-
Instruction/Installation Manual
