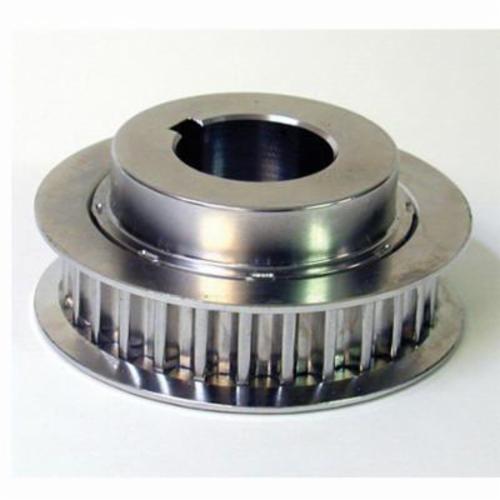

Gates® Power Transmission Poly Chain® GT®2 14MX-33S-37 Synchronous Sprocket, 1/2 to 2-11/16 in Taper-Lock® Bore, 5.68 in OD, 33 Grooves, 5.79 in Dia Pitch, 2.06 in W Face
Poly Chain GT sprockets use the tooth profile designed and developed by Gates and function with Gates Poly Chain GT belts in all existing constructions. These sprockets are statically balanced to make sure the entire belt drive is as safe as possible. Furthermore, they are manufactured, specified, and tested to perfectly support the full power capabilities of the Gates Poly Chain belt product range. Belts and sprockets used together get the best out of your belt drive: maximum performance, prolonged antistatic properties and optimal lifetime.
-
BrandGates® Power Transmission
-
UPC072053272048
-
Manufacturer Part Number14MX-33S-37
-
CountryUSA|Canada
-
Face Width2.06 in
-
Bushing Type2517
-
Pitch14 mm
-
Pitch Diameter5.79 in
-
MaterialCast Iron
-
Flange Diameter6.46 in
-
Series7719
-
Hub Diameter4.53 in
-
Number of Grooves33
-
Outside Diameter5.68 in
-
Bore Diameter1/2 to 2-11/16 in
-
Bore TypeTaper-Lock®
-
Suitable For Use With37 mm W Poly Chain® Belt
- Full split in bushing allows easy installation and removal
- Poly Chain® GT®2 sprockets keep overhung load below manufacturers recommendation
- Precise sprocket design produces positive, press fit to shaft
- Sprockets are precision manufactured and static balanced
- Smaller, narrower sprockets save shaft space, keep the load closer to bearing and extend life of reducer
-
Alternative Part Number77193033
-
UNSPSC31171900
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Catalog
-
Full Engineering Drawing
