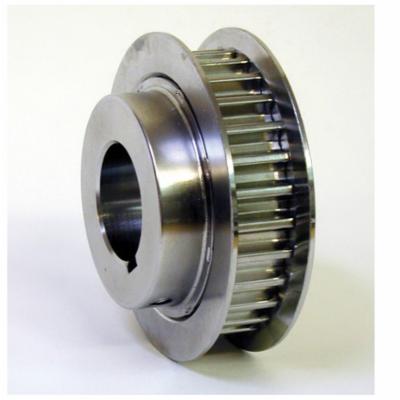

Gates® Power Transmission PowerGrip® GT®2 Poly Chain® GT®2 P32-5MGT-15-MPB Synchronous Sprocket, 1/2 to 15/16 in, 1.96 in OD, 32 Grooves, 2.005 in Dia Pitch, 0.89 in W Face
PowerGrip Sprockets and Pulleys provide optimum performance for all constructions of PowerGrip GT, PowerGrip HTD and PowerGrip Timing belts, delivering maximum performance and superior reliability. PowerGrip sprockets are precision manufactured and static balanced to eliminate sprocket wobble.
-
BrandGates® Power Transmission
-
UPC72053462388
-
Manufacturer Part NumberP32-5MGT-15-MPB
-
CountryUSA|Canada
-
Face Width0.89 in
-
Bushing TypeMPB
-
Pitch5 mm
-
Pitch Diameter2.005 in
-
FinishClear Zinc
-
MaterialSteel
-
Flange Diameter2.13 in
-
Series7709
-
Hub Diameter1.44 in
-
Number of Grooves32
-
Outside Diameter1.96 in
-
Bore Diameter1/2 to 15/16 in
-
Overall Length1.34 in
-
Suitable For Use With15 mm W PowerGrip® GT®3 and Poly Chain® GT® Carbon™ Belts
- Full split in bushing allows easy installation and removal
- Precise sprocket design produces positive, press fit to shaft
- Precision manufactured and static balanced
- Smaller, narrower sprockets save shaft space, keep the load closer to bearing and extend life of reducer
-
Alternative Part Number77093032
-
UNSPSC31171900
-
Package DescriptionEACH
-
