Gates DOUBLE-V V-BELTS GAT CC-81
Designed with a unique recessed top and bottom to maintain sidewall contact, while remaining flexible for belt drive applications that require power transmission from both sides of the belt.
-
BrandGates® Power Transmission
-
UPC72053208207
-
Manufacturer Part NumberCC81
-
CountryUSA|Canada
-
Temperature Range-30 to 140 deg F
-
Thickness23/32 in
-
MaterialEPDM
-
Top Width7/8 in
-
Reinforced MaterialFlex-Bonded Polyester
-
ColorBlack
-
TypeBanded Heavy Duty
-
Section SizeCC
-
Series9054
-
Number of Ribs1
-
Outside Length85 in
-
Minimum Pulley Diameter7.958 in

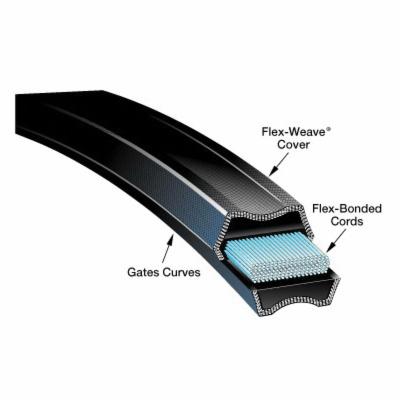

- Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
- The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
- Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life
-
UNSPSC26111801
-
Standards/ApprovalsARPM/RMA IP-3-2/IP-3-3
-
Alternative Part Number90540081
-
Package DescriptionEACH
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
