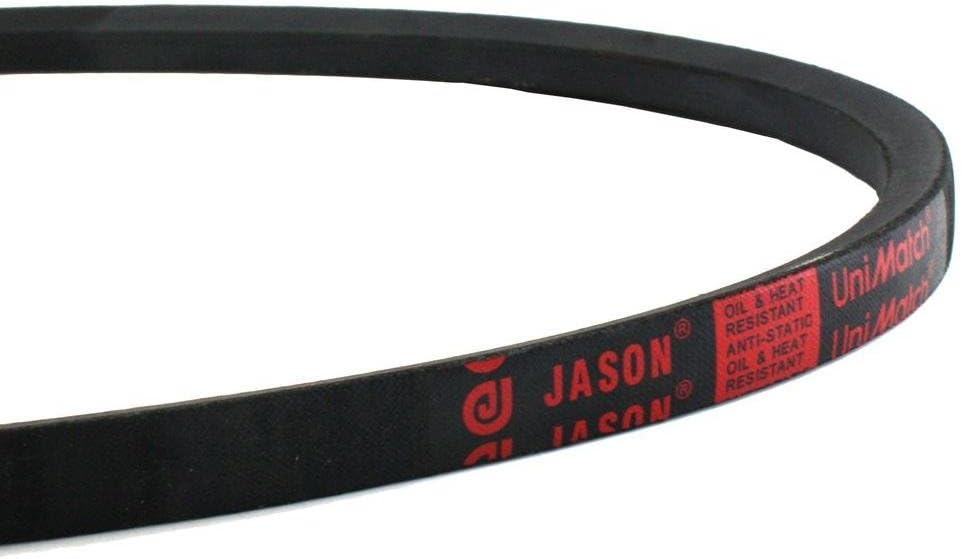

JASON® B120 V-Belt, B Section, 21/32 in W Top, 120 in L Outside, 13/32 in THK
JASON® B120 V-Belt, B Section, 21/32 in W Top, 120 in L Outside, 13/32 in THK
-
BrandJASON®
-
Manufacturer Part NumberB120
-
CountryUSA
-
Thickness13/32 in
-
Top Width21/32 in
-
Section SizeB
-
Outside Length120 in
