MORSE C/Tool 3/8" 3-FL SE CC CRB BALL ENDMILLS MCT 54818

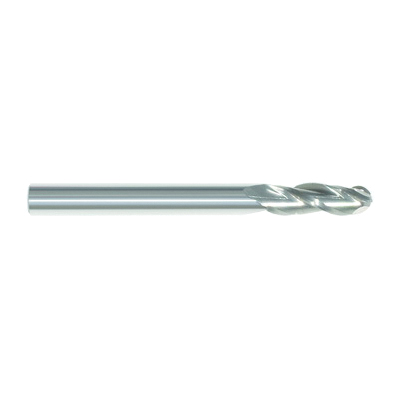

MORSE® 54818 5969 Ball Nose Center Cutting Regular Length Single End Mill, 3/8 in Dia Cutter, 1 in Length of Cut, 3 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, Bright
-
BrandMORSE®
-
UPC686125548186
-
Manufacturer Part Number54818
-
CountryUSA
-
FinishBright
-
MaterialMicrograin Solid Carbide
-
Flute TypeHelix
-
TypeBall Nose Center Cutting Regular Length
-
Helix Angle30 deg
-
Series5969
-
Cutter Diameter3/8 in
-
Shank Diameter3/8 in
-
Number of Flutes3
-
Length of Cut1 in
-
Overall Length2-1/2 in
- 3-Flute end mill provide a compromise between the chip capacity of 2-flute mill and the tool strength, higher feed rate and improved surface finish of a 4-flute mill
- Recommended for easy to machine materials including low alloy steels, non-ferrous materials and cast iron
- Center cutting end allows for plunge cutting like a drill into solid material
- Solid carbide offers excellent rigidity, hardness, wear resistance and heat resistance for higher cutting speeds and longer tool life
-
UNSPSC27112803
-
Package Description1/PK
