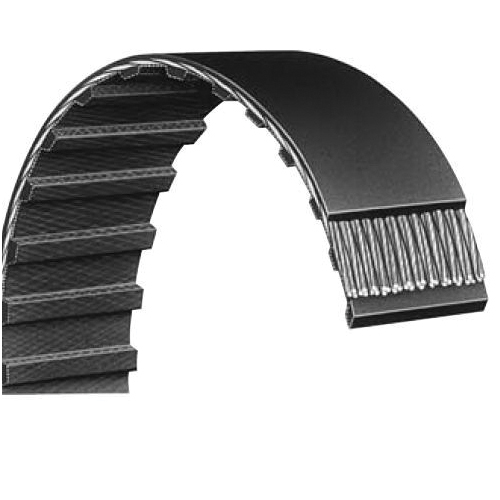

Bando Synchro-Link® 394L100G Trapezoidal Synchronous Timing Belt, 105 Teeth, 3/8 in Pitch, 39.38 in OAL, 1 in W, Neoprene
The extra durable, highly flexible neoprene backing provides excellent abrasion and wear resistance - especially important if power is transmitted from the back of the belt. Backing also guards the tensile cords against oil, grease, dirt and moisture.
-
BrandBando
-
UPC649717067410
-
Manufacturer Part Number394L100G
-
CountryUSA
-
Pitch3/8 in
-
Temperature Range-22 to 194 deg F Ambient
-
MaterialNeoprene
-
Reinforced MaterialFiberglass
-
TypeTrapezoidal Synchronous
-
Width1 in
-
SeriesL Series
-
Number of Teeth105
-
Overall Length39.38 in
- Continuous, helically wound high strength fiberglass tensile cords guarantee dimensional stability to eliminate take up adjustments
- Heavy torque loads won't fatigue this super strong cord
- S and Z orientation of the cords aid in minimizing belt tracking problems
- Precision formed, oil and heat resistant neoprene teeth have a shear resistance equal to the tensile strength of the belt (under standard "6 teeth in mesh" tests)
- Tooth design and tight manufacturing tolerances provide full surface contact between belt and pulley for smooth running characteristics
- The tooth surface is protected by a low friction, clean running, wear resistant woven nylon facing
- Seamless construction eliminates vibration
-
Alternative Part Number394L100
-
UNSPSC26111802
-
Package DescriptionEACH
-
Standards/ApprovalsARPM Standard|RMA IP-24
-
Warranty1 year
-
Catalog
-
Instruction/Installation Manual
