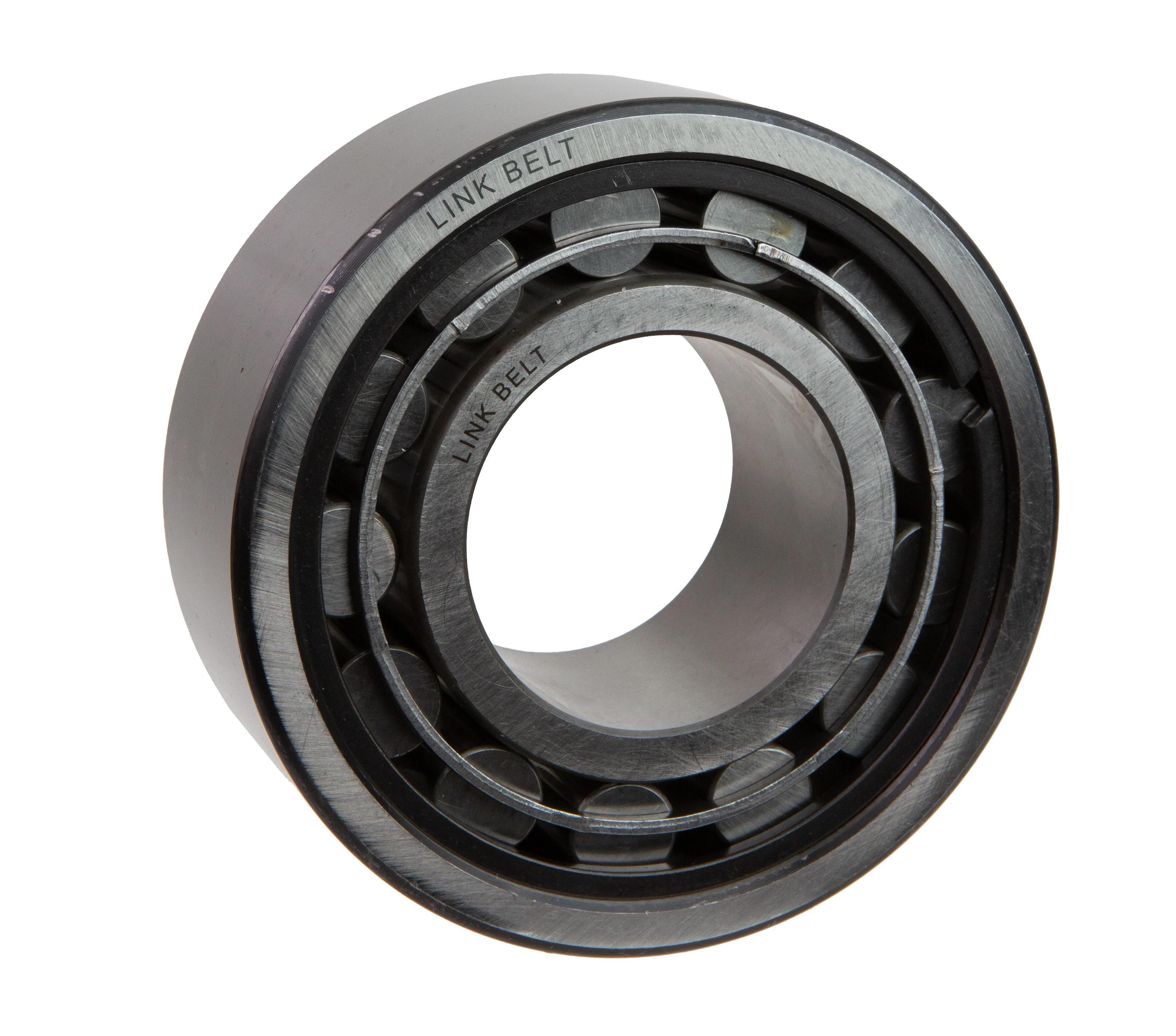

Link-Belt CYLINDRICAL ROLLER BEARINGS LNK MA-5217-TV
Link-Belt® cylindrical roller bearings offer a broad range of configuration options and features to ensure you get the best value on delivery and performance. Utilizing case-carburizing, bearing quality steel and complex geometries, our bearings are designed to consistently perform in demanding applications, and our broad product range includes a bearing for any application. Plus, we offer dedicated engineering support to help customize units to your specifications.
-
BrandLink-Belt®
-
UPC662327053185
-
Manufacturer Part Number10342890
-
CountryUSA|Canada
-
Load Capacity201000 N Dynamic/354000 N Static
-
Cage MaterialFormed Steel
-
Temperature Rating-40 to 275 deg F
-
FinishUncoated
-
Closure TypeOpen
-
TypeLight Unmounted
-
Width49.21 mm
-
SeriesM5200
-
Number of Rows1
-
Bearing MaterialChrome Steel
-
Outside Diameter150 mm
-
Bore Diameter85 mm
- 85 mm Cylindrical Roller Bearing with plain cylindrical inner ring, 2 retaining rings in outer ring and formed steel retainer
- Standard capacity
- Outer ring with two retaining rings in ID
- Separable ring
- Fully crowned rollers
- Precision ground ribs
- Rollers individually separated
- High and low-volume manufacturing capabilities
- Super-finished raceways for smooth operation
- Broad standard product range
- 5217 bearing number
-
Alternative Part NumberMA5217TV
-
UNSPSC31171500
-
Standards/ApprovalsANSI|ABMA STD 11
-
Package DescriptionEACH
-
Catalog
-
Instruction/Installation Manual
