NSK Bearings CYLINDRICAL ROLLER BEARINGS NSK NU-207-M

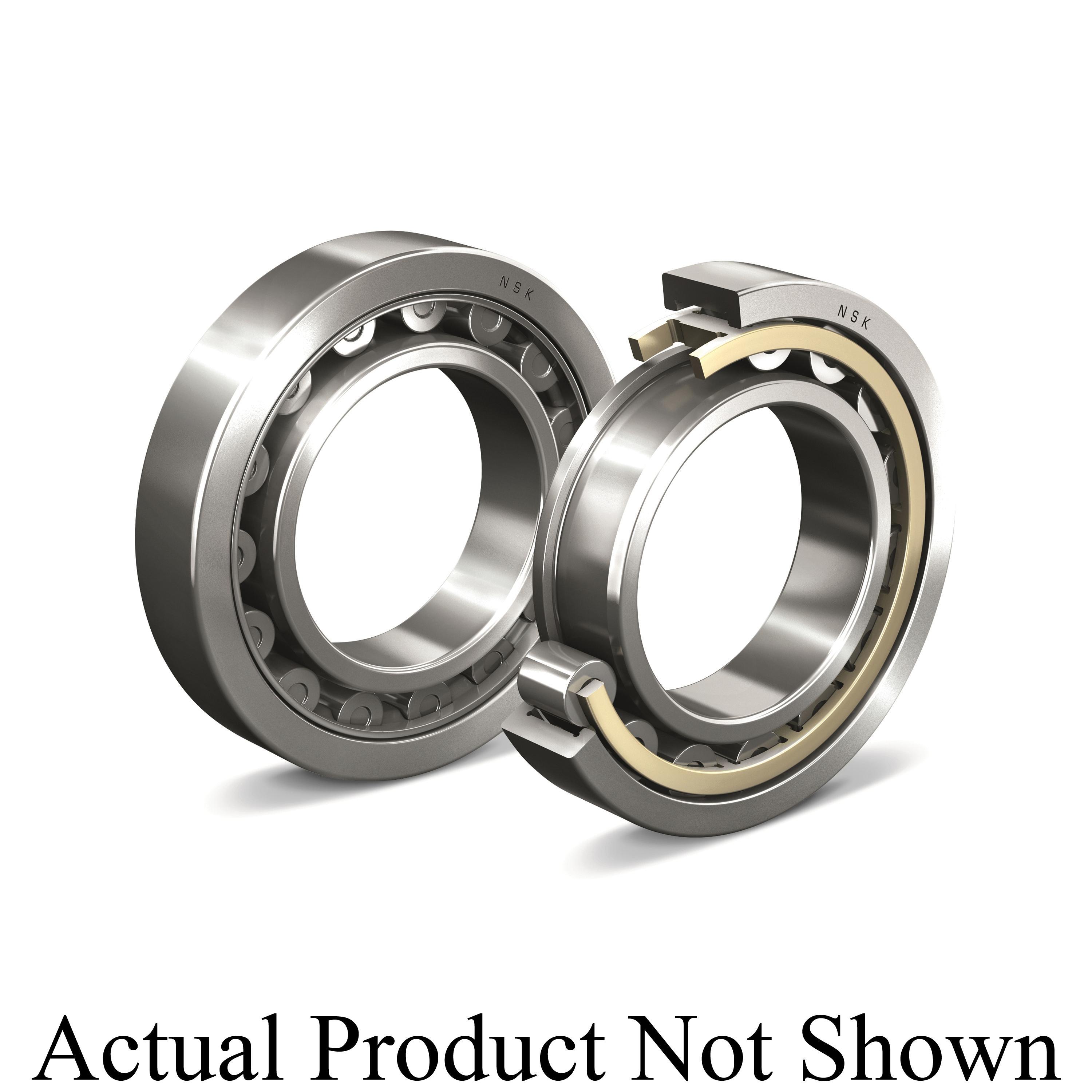

NSK Cylindrical Roller Bearings are available with a patented high strength cage design in pressed steel, machined brass or polyamide. Special materials are available for more arduous applications. Cylindrical bearings offer low noise and low heat generation and by virtue of the line contact between rolling elements and raceways, have high radial load capacity which are suited for high-speed applications.
-
BrandNSK
-
UPC029176002182
-
Manufacturer Part NumberNU207EM
-
CountryUSA
-
Load Capacity58000 N Dynamic/50000 N Static
-
Cage MaterialMachined Brass
-
Maximum Speed8500 rpm Grease/10000 rpm Oil
-
Closure TypeOpen
-
TypeLight
-
Width17 mm
-
Series2 Series
-
Number of Rows1
-
Outside Diameter72 mm
-
Bore Diameter35 mm
- High radial load capacity makes them suitable for high speed applications
- Special designs - NSK manufactures a range of four-row cylindrical roller bearings, primarily designed for use in steel mill roll-neck bearings
-
UNSPSC31171547
-
Package Description1/PK
-
