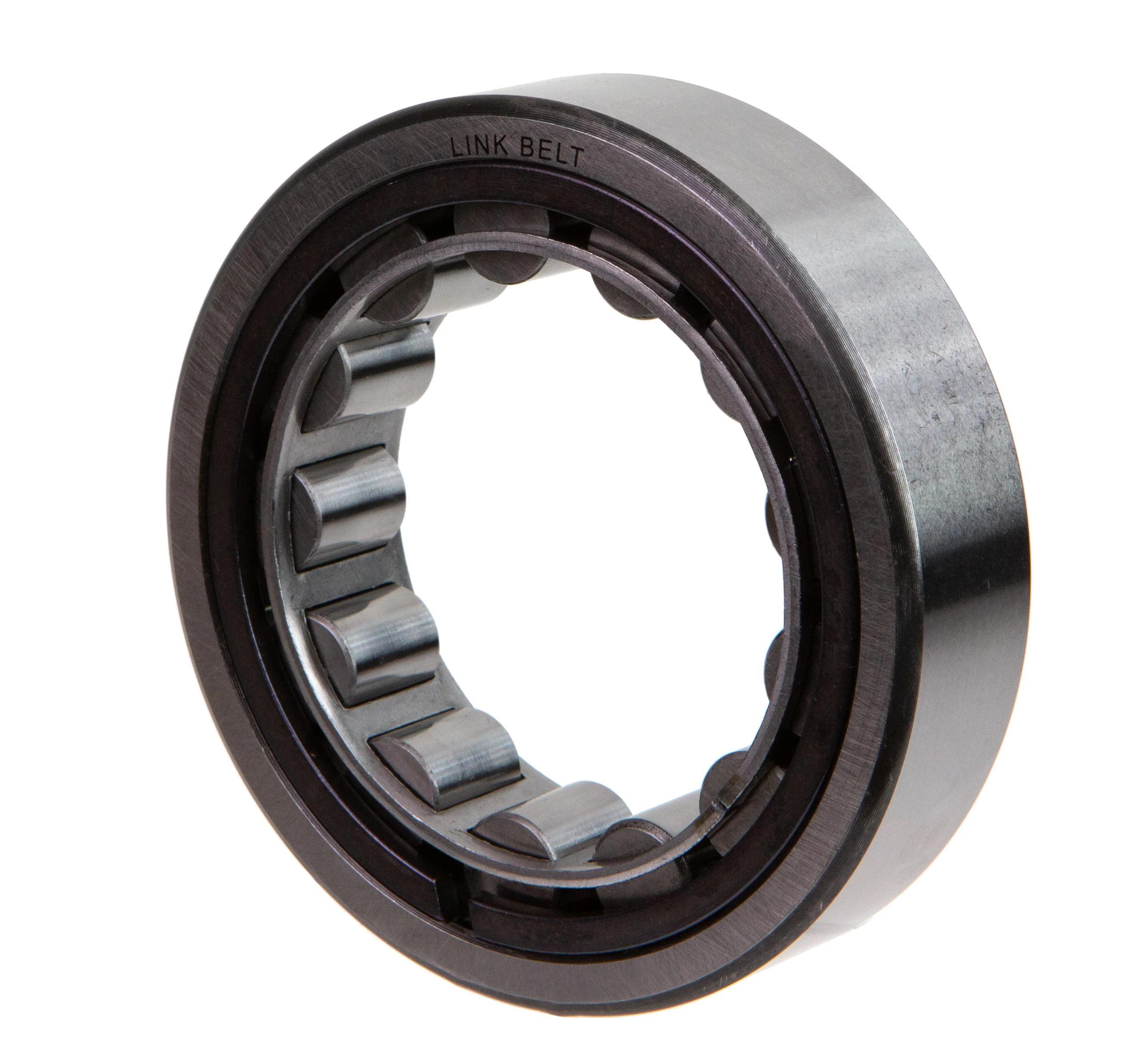

Link-Belt CYLINDRICAL ROLLER BEARINGS LNK M-1306-U
Link-Belt® cylindrical roller bearings offer a broad range of configuration options and features to ensure you get the best value on delivery and performance. Utilizing case-carburizing, bearing quality steel and complex geometries, our bearings are designed to consistently perform in demanding applications, and our broad product range includes a bearing for any application. Plus, we offer dedicated engineering support to help customize units to your specifications.
-
BrandLink-Belt®
-
UPC662327106621
-
Manufacturer Part Number10474473
-
CountryUSA|Canada
-
Load Capacity9730 lb Dynamic/9270 lb Static
-
Cage MaterialFormed Steel
-
Temperature Rating-40 to 275 deg F
-
FinishUncoated
-
Closure TypeOpen
-
TypeMedium
-
Width19 mm
-
SeriesM1300
-
Number of Rows1
-
Bearing MaterialChrome Steel
-
Outside Diameter72 mm
-
Bore Diameter30 mm
- Contact Rexnord for more details
- Single rib outer ring
- One retaining ring in ID
- Standard capacity
- Fully crowned rollers
- Precision ground ribs
- Rollers individually separated
- High and low-volume manufacturing capabilities
- Super-finished raceways for smooth operation
- Broad standard product range
- 1306 bearing number
-
Alternative Part NumberM1306UV
-
UNSPSC31171500
-
Standards/ApprovalsANSI|ABMA STD 11
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Catalog
