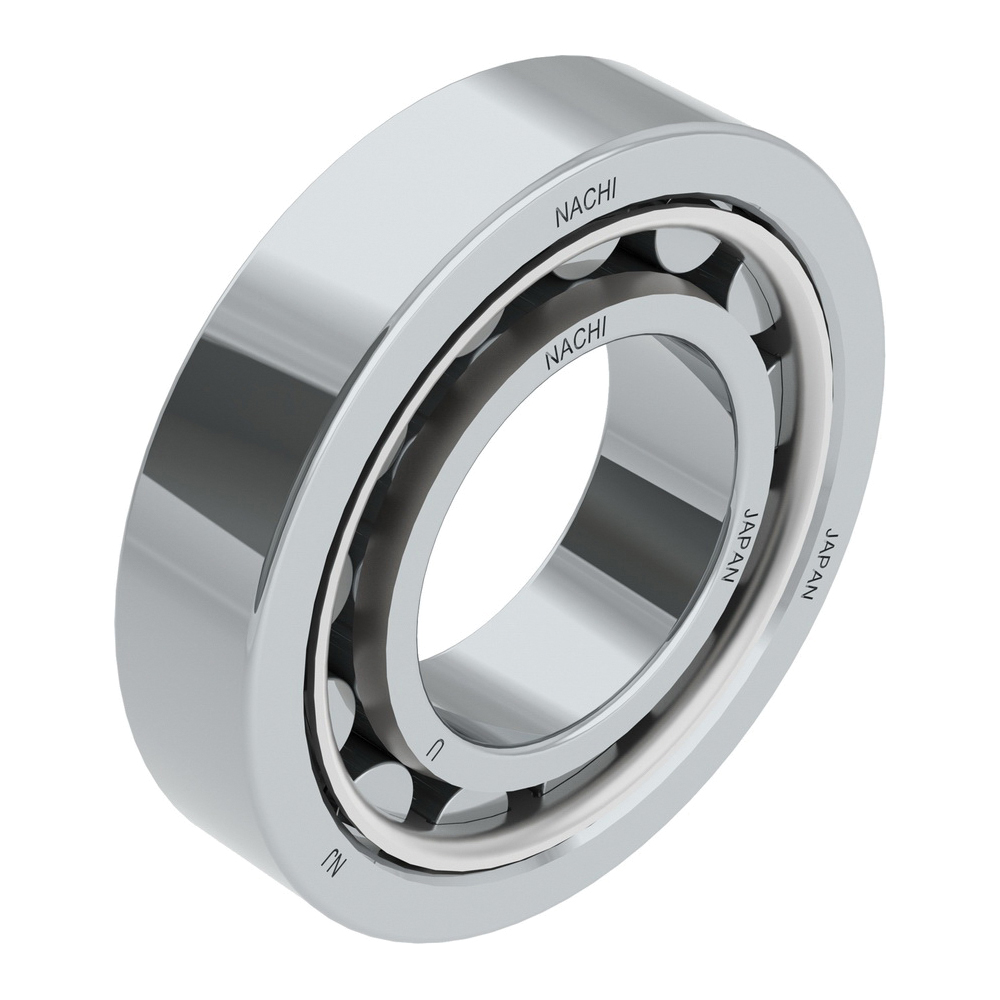

NACHI CYLINDRICAL ROLLER BEARING NAC NJ-207-M
Cylindrical Roller Bearing – ‘NJ’ CONFIGURATION Cylindrical Roller Bearings utilize a modified cylindrical roller that provides line contact with the inner and outer ring raceways. They are suitable for high speeds and have a high radial load capacity. The rollers are guided by ribs on either the inner or outer rings. Depending upon the configuration, the bearings may or may not be able to accept any axial loading. The inner and outer rings are separable which may aid in assembly/disassembly of components. The ‘NJ’ Type bearings has shoulders on both sides of the outer ring and one shoulder on the inner ring. This allows the bearing to accept light axial loads in one direction. Some sizes may be available in a high capacity design (EG) that has larger diameter rollers and a polyamine cage. Stamped steel or machined brass (MY) cages are generally used. These bearings are most commonly used in gearboxes, rolling mills, crushers and pulverizers.
-
BrandNACHI
-
Manufacturer Part NumberNJ207
-
CountryUSA
-
Load Capacity33500 N Dynamic/31500 N Static
-
Cage MaterialStamped Steel
-
Temperature Rating400 deg F
-
Maximum Speed9000 rpm Grease/11000 rpm Oil
-
Width17 mm
-
SeriesNJ200
-
Number of Rows1
-
Bearing MaterialSteel
-
Outside Diameter72 mm
-
Bore Diameter35 mm
- Large radial load capacity
- Suitable for high speed applications
- Low friction between rollers and flanges
- Small radial load capacity in only one direction with on integral flange or by mountings a loose flange
-
UNSPSC31171505
-
Warranty1 year
-
