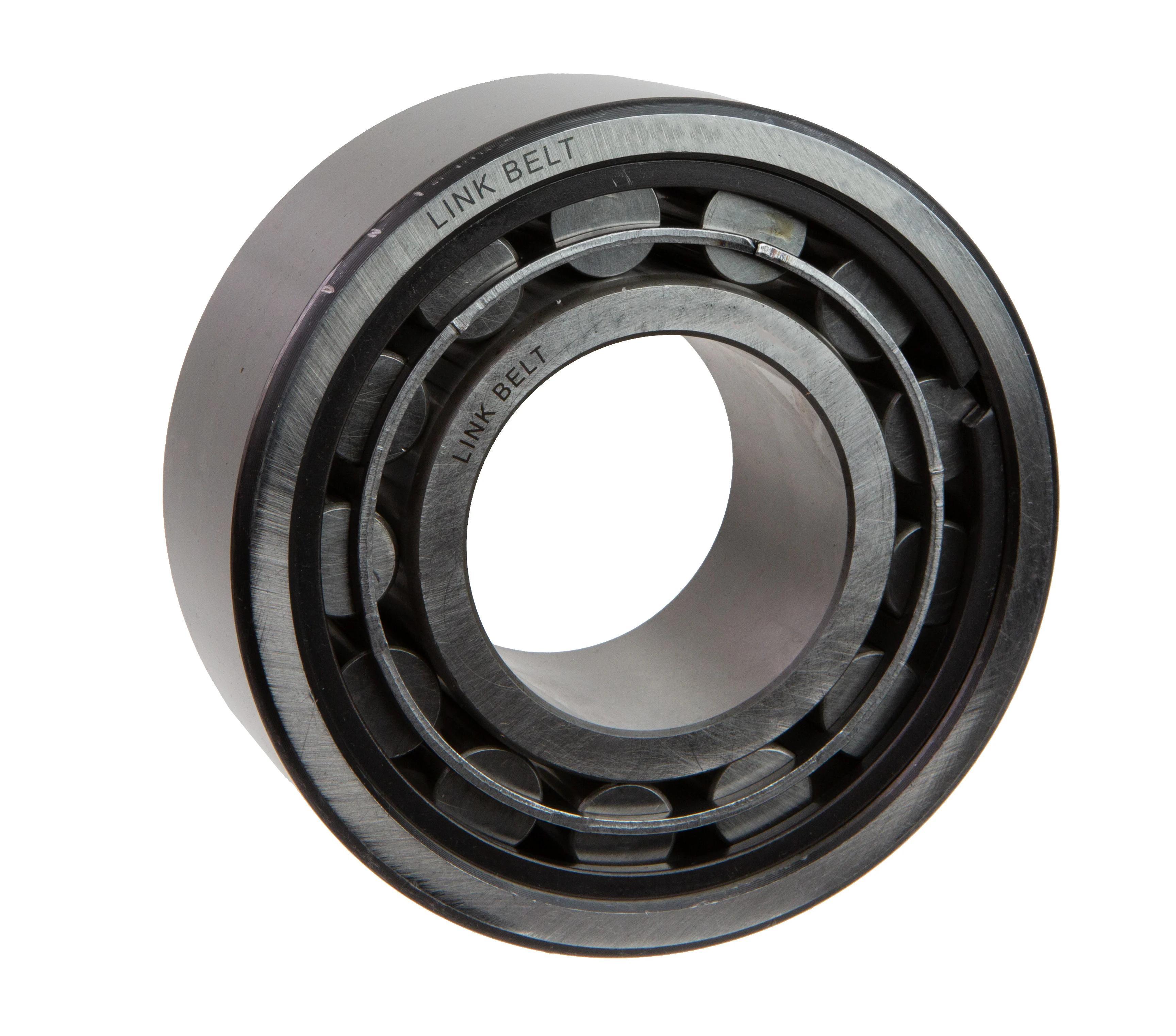

Link-Belt CYLINDRICAL ROLLER BEARINGS LNK MA-5220-TV
Metric series cylindrical roller bearings are manufactured to ABMA boundary dimensions. These bearings require minimum space and provide maximum rated capacity. Various configurations including separable inner or outer ring combinations offer ample application flexibility.
-
BrandLink-Belt®
-
UPC662327053284
-
Manufacturer Part Number10473857
-
CountryUSA|Canada
-
Load Capacity65900 lb Dynamic/117000 lb Static
-
Cage MaterialSteel
-
FinishUncoated
-
Closure TypeOpen
-
TypeWide Width
-
Width60.325 mm
-
Series5200 Light
-
Number of Rows1
-
Bearing MaterialChrome Steel
-
Outside Diameter180 mm
-
Bore Diameter100 mm
- 100 mm Cylindrical Roller Bearing with plain cylindrical inner ring, 2 retaining rings in outer ring and formed steel retainer
- Micro finished raceways assure smooth operations
- Optimized raceway contact area
- Positive roller spacing
- Fully crowned roller
- Precision ground rib
- Contoured roller pockets
- Rollers individually separated
- Outer ring with two retaining rings in inside diameter
- Formed steel retainer
- Plain cylindrical inner ring
- Standard capacity
-
Alternative Part NumberMA5220TV
-
UNSPSC31171547
-
Standards/ApprovalsANSI/ABMA STD 11
-
Warranty1 Year
-
Package DescriptionEACH
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
