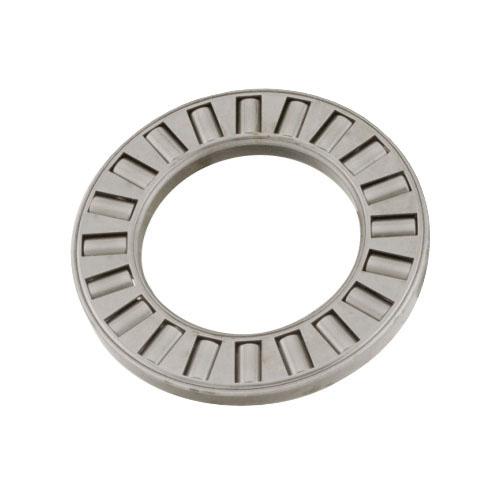

Koyo NTA-815 Inch Series Caged Round Bore Single Row Thrust Needle Roller and Cage Assembly, 1/2 in Dia Bore, 0.937 in OD, 0.0781 in W, 1/2 in Dia Shaft, High Carbon Chrome Steel Bearing/Carbon Steel Cage
Thrust Needle Roller and Cage Assemblies are the complements of small diameter needle rollers, arranged in spoke-like configuration. Needle rollers are equally spaced means of cage, its web section separates the rollers and provides guidance to keep them tracking in an orbital path. The purpose of these assemblies is to transmit a thrust load between two relatively rotating objects while greatly reducing friction. Thrust Needle Roller and Cage Assemblies also can be utilized with lipped washer to serve as raceway surface for the needle rollers. Washers can be supplied separately or can be mechanically unitized to the Thrust Needle Roller and Cage Assemblies for ease of handling.
-
BrandKoyo
-
UPC605790192739
-
Manufacturer Part NumberNTA-815
-
CountryUSA
-
Load Capacity7.16 kN Dynamic/19.13 kN Static
-
Temperature Rating-30 to 110 deg C
-
MaterialHigh Carbon Chrome Steel Bearing/Carbon Steel Cage
-
Maximum Speed19000 rpm Oil
-
TypeCaged Round Bore Single Row
-
Width0.0781 in
-
SeriesNTA Inch Series
-
Outside Diameter0.937 in
-
Bore Diameter1/2 in
- One-way fool-proof assembly features, anti-rotation locking features and lubrication flow enhancements
- Best used for high axial loads that require a thin cross section
- High speed performance and application flexibility
-
UNSPSC31171541
-
Standards/ApprovalsABEC1
