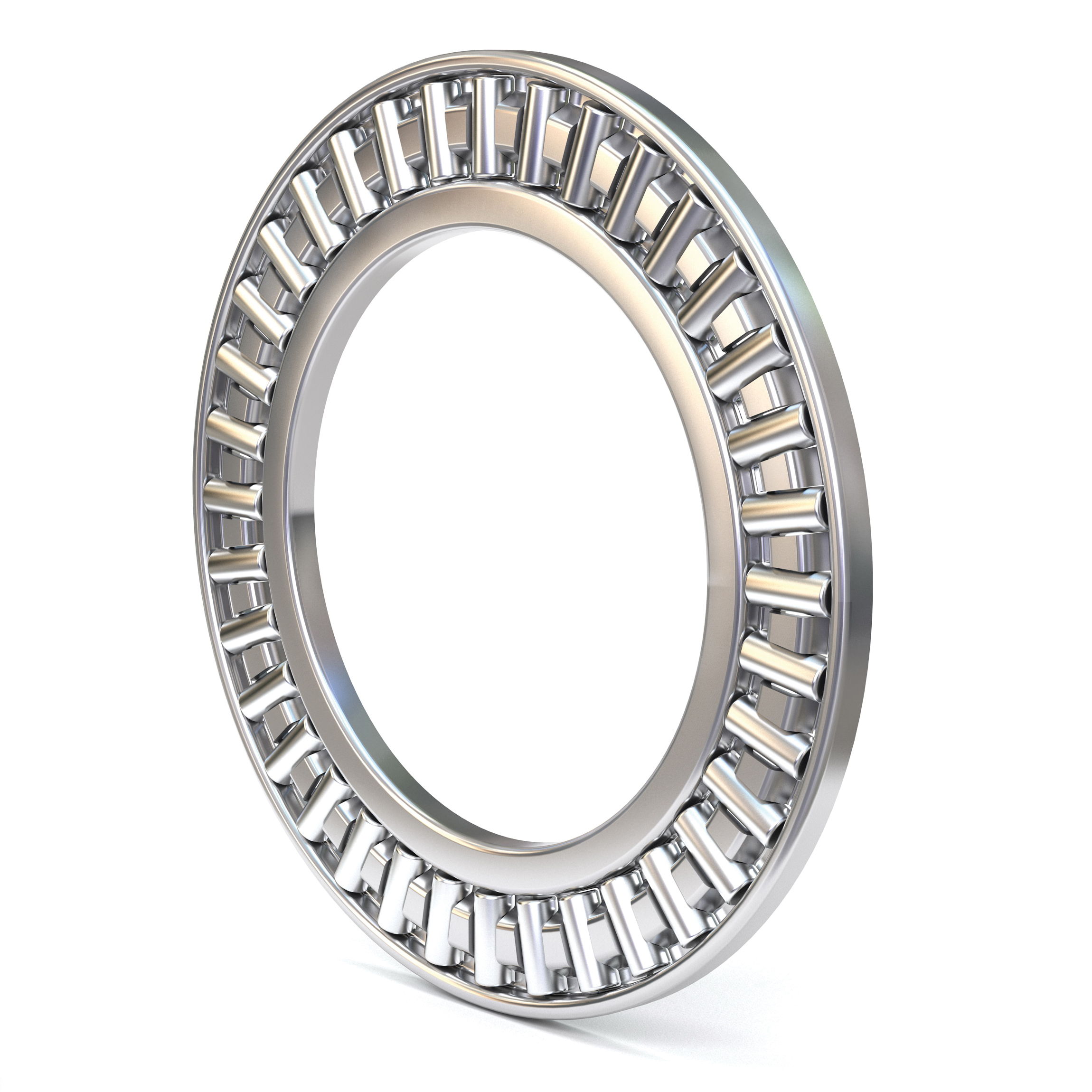

Koyo AXK3552 Metric Series Thrust Needle Roller and Cage Assembly, 35 mm Dia Bore, 52 mm OD, 2 mm W, 35 mm Dia Shaft, Steel
Thrust needle roller and cage assemblies are complements of small diameter needle rollers, arranged in a spoke-like configuration. Needle rollers are equally spaced by means of a cage, its web section separates the rollers and provides guidance to keep them tracking in an orbital path. The purpose of these assemblies is to transmit a thrust load between two relatively rotating objects while greatly reducing friction. Thrust needle roller and cage assemblies also can be unitized with lipped washers to serve as raceway surfaces for the needle rollers. Washers can be supplied separately or can be mechanically unitized to the thrust needle roller and cage assemblies for ease of handling.
-
BrandKoyo
-
UPC605790210853
-
Manufacturer Part NumberAXK3552
-
CountryUSA
-
Load Capacity17.4 kN Dynamic/79.5 kN Static
-
MaterialSteel
-
Maximum Speed8100 rpm Oil
-
TypeThrust
-
Width2 mm
-
SeriesAXK Metric Series
-
Outside Diameter52 mm
-
Bore Diameter35 mm
- One-way fool-proof assembly
- Anti-rotation locking
- Lubrication flow enhancements
- High-speed performance and application flexibility
-
Alternative Part NumberAXK3552PBL225
-
UNSPSC31171541
-
Standards/ApprovalsANSI/ABMA Standard 21.1|DIN 5405 Part 2
-
