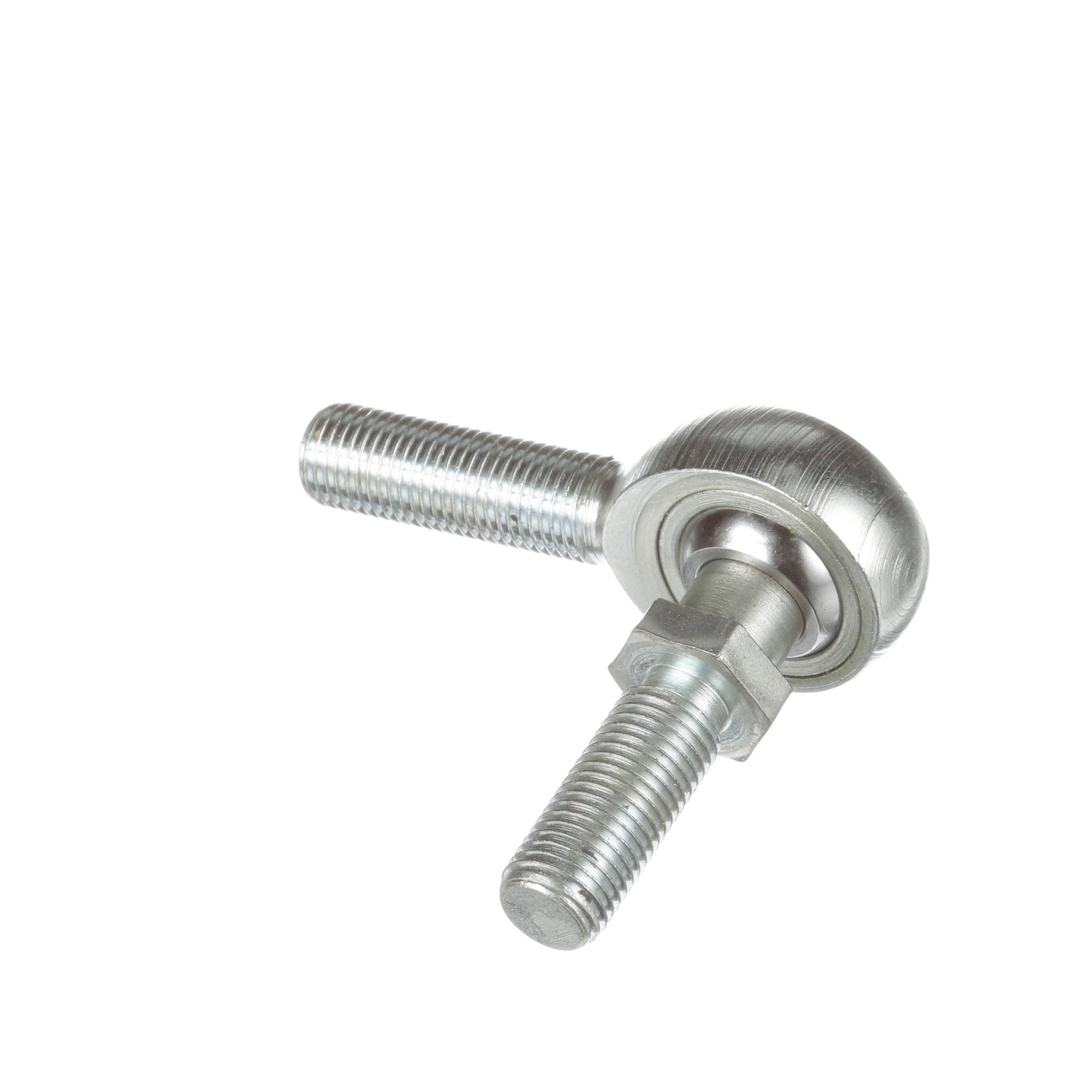

Sealmaster 5/8" SAE R/HAND STUD MALE ROD ENDS SEA TRE-10-Y
Sealmaster® two and three piece rod end bearing housing designs have been optimized for overall strength. This housing advantage and variety of outer race materials including brass, steel, Delrin® and PTFE liners provide a wide selection of application solutions. Sealmaster® rod end bearings can be joined together or connected with a threaded rod or tube as linkage assemblies for flexibility in motion transfer. In addition Sealmaster® rod end bearings can accommodate angular misalignment to provide ease in assembly and smooth motion transfer in a variety of applications.
-
BrandSealmaster®
-
UPC662288720522
-
Manufacturer Part Number1401008000
-
CountryUSA
-
Load Capacity8050 lb Static
-
Temperature Rating350 deg F
-
MaterialCarbon Steel
-
Thread Size5/8-18 Dia x 1.594 in L
-
Thread TypeMale UNF
-
Type3-Piece Precision Grade General Purpose
-
Width3/4 in
-
SeriesTRE
-
Outside Diameter1-1/2 in
-
Bore Diameter5/8 in
- Machined steel housing
- Higher average tensile strength, fatigue life and competition
- Less wear than rod ends with 2-piece race designs
- Alloy steel heat treated and chrome plated ball for corrosion resistance
- Better wear resistance properties than carbon steel tin nickel plated balls
- Right hand external thread
- Carbon steel corrosion resistant plating Y-stud
-
Alternative Part NumberTRE 10Y
-
UNSPSC31171508
-
Package DescriptionEACH
-
