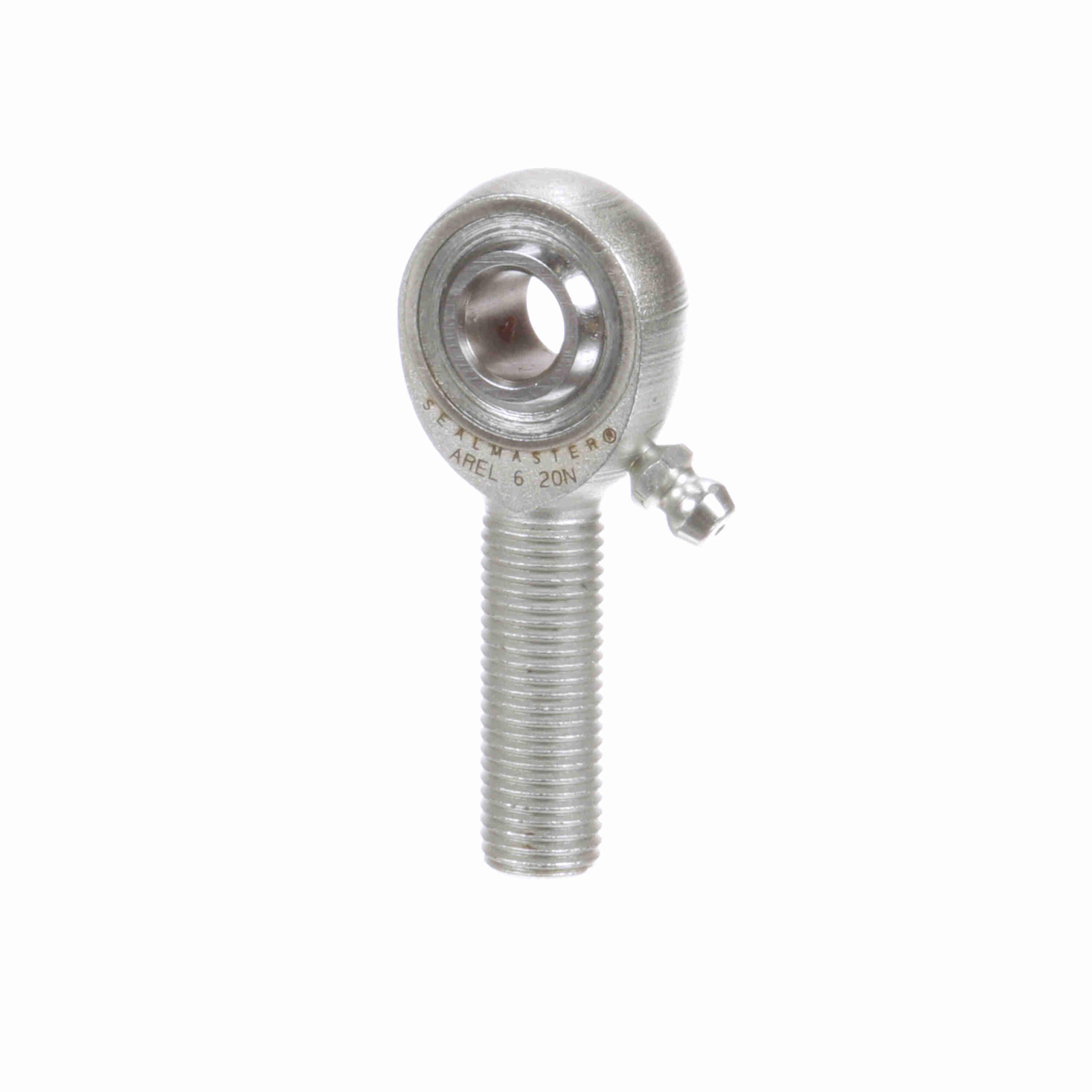

Sealmaster 3/8" LEFT HAND THREAD 3-PC ROD END SEA ARE-L-6-20-N
Sealmaster® two and three piece rod end bearing housing designs have been optimized for overall strength. This housing advantage and variety of outer race materials including brass, steel, Delrin® and PTFE liners provide a wide selection of application solutions. Sealmaster® rod end bearings can be joined together or connected with a threaded rod or tube as linkage assemblies for flexibility in motion transfer. In addition Sealmaster® rod end bearings can accommodate angular misalignment to provide ease in assembly and smooth motion transfer in a variety of applications.
-
BrandSealmaster®
-
UPC662288720164
-
Manufacturer Part Number1540603000
-
CountryUSA
-
Load Capacity9570 lb Static
-
Temperature Rating350 deg F
-
MaterialAlloy Steel
-
Thread Size7/16-20 Dia x 1.219 in L
-
Thread TypeMale UNF
-
Type3-Piece Precision Grade Extra Capacity
-
Width1/2 in
-
SeriesARE-20N
-
Outside Diameter1 in
-
Bore Diameter3/8 in
- 3-piece design rod ends with heat treated alloy steel housing for high static and radial loads
- 1-piece carbon steel outer race with protective coating for corrosion resistance
- Alloy steel heat treated and chrome plated ball for wear resistance properties
- The construction also helps reduce pound-out in applications with high frequency oscillation, vibration or shock loading
- Oversized shank for additional shank strength
- Male External Left-Hand Threads
-
Alternative Part NumberAREL 6 20N
-
UNSPSC31171508
-
Package DescriptionEACH
-
