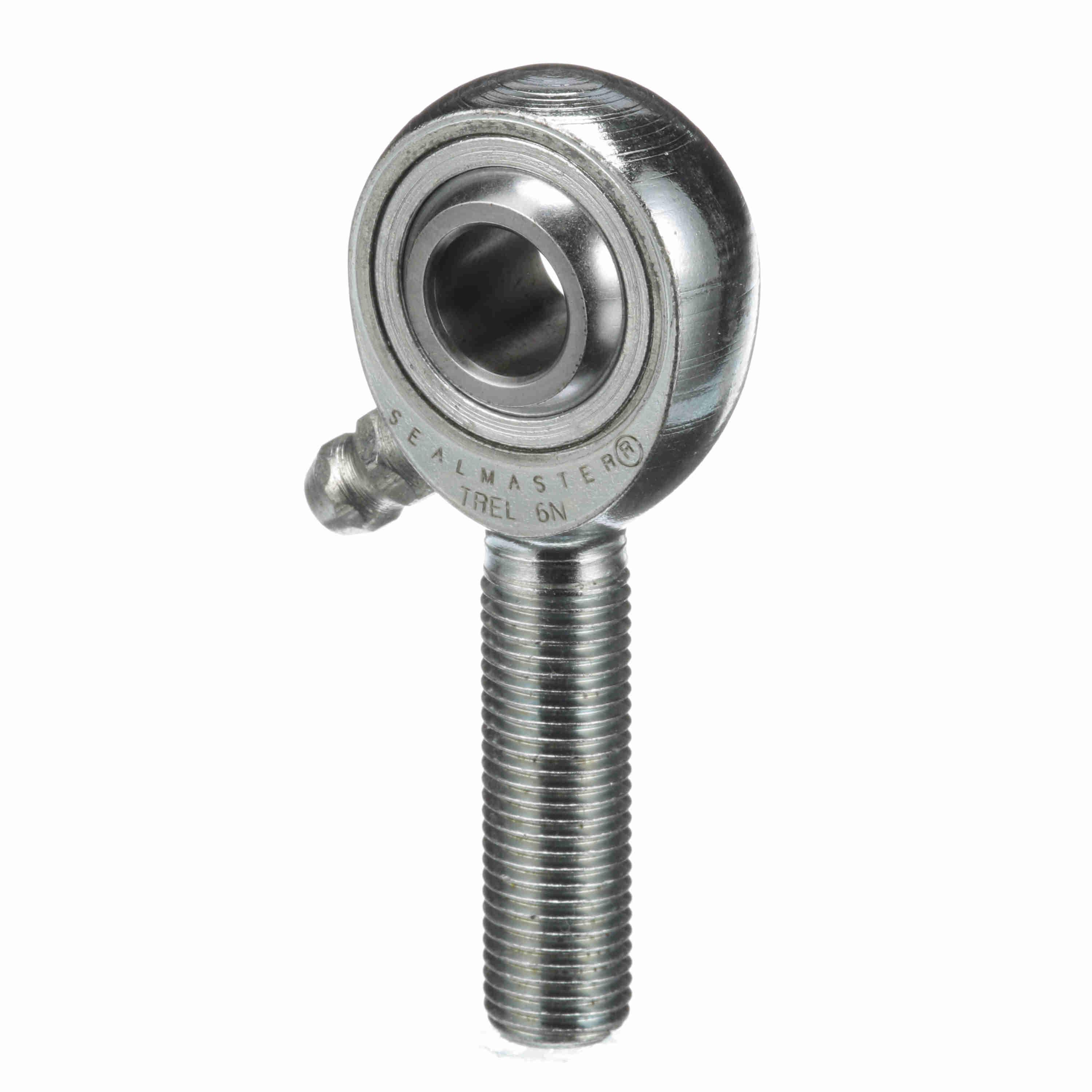

Sealmaster 3/8"-24 SAE L/HAND MALE ROD ENDS SEA TRE-L-6-N
Sealmaster® 3-piece rod ends incorporate a 1-piece race formed around a hardened steel chrome plated ball in a controlled manufacturing process. 3-piece construction offers flexibility for alternative race materials designed to help solve specific application problems.
-
BrandSealmaster®
-
UPC662288720317
-
Manufacturer Part Number1500601000
-
CountryUSA
-
Load Capacity4000 lb Static
-
Temperature Rating350 deg F
-
MaterialCarbon Steel
-
Thread Size3/8-24 x 1.219 in
-
Thread TypeMale UNF
-
Type3-Piece General Purpose Precision
-
Width1/2 in
-
SeriesTRE
-
Outside Diameter1 in
-
Bore Diameter3/8 in
- Higher average tensile strength and fatigue life, competition
- Wrench flat on female rod ends facilitates assembly
- Reduces pound-out in applications with high frequency oscillation, vibration or shock loading
- Improved spherical ball-race conformity for even load distribution
- Precision ball-race fit
- Less wear than rod ends with 2-piece race designs
- Manufactured in steel, aluminum bronze and self lubricating Delrin®
- Alloy steel heat treated and chrome plated for corrosion resistance
- Grease fitting
- Male External Left-Hand Threads
-
Alternative Part NumberTREL 6N
-
UNSPSC31171508
-
Package DescriptionEACH
-
Standards/ApprovalsAMBA Standard
-
