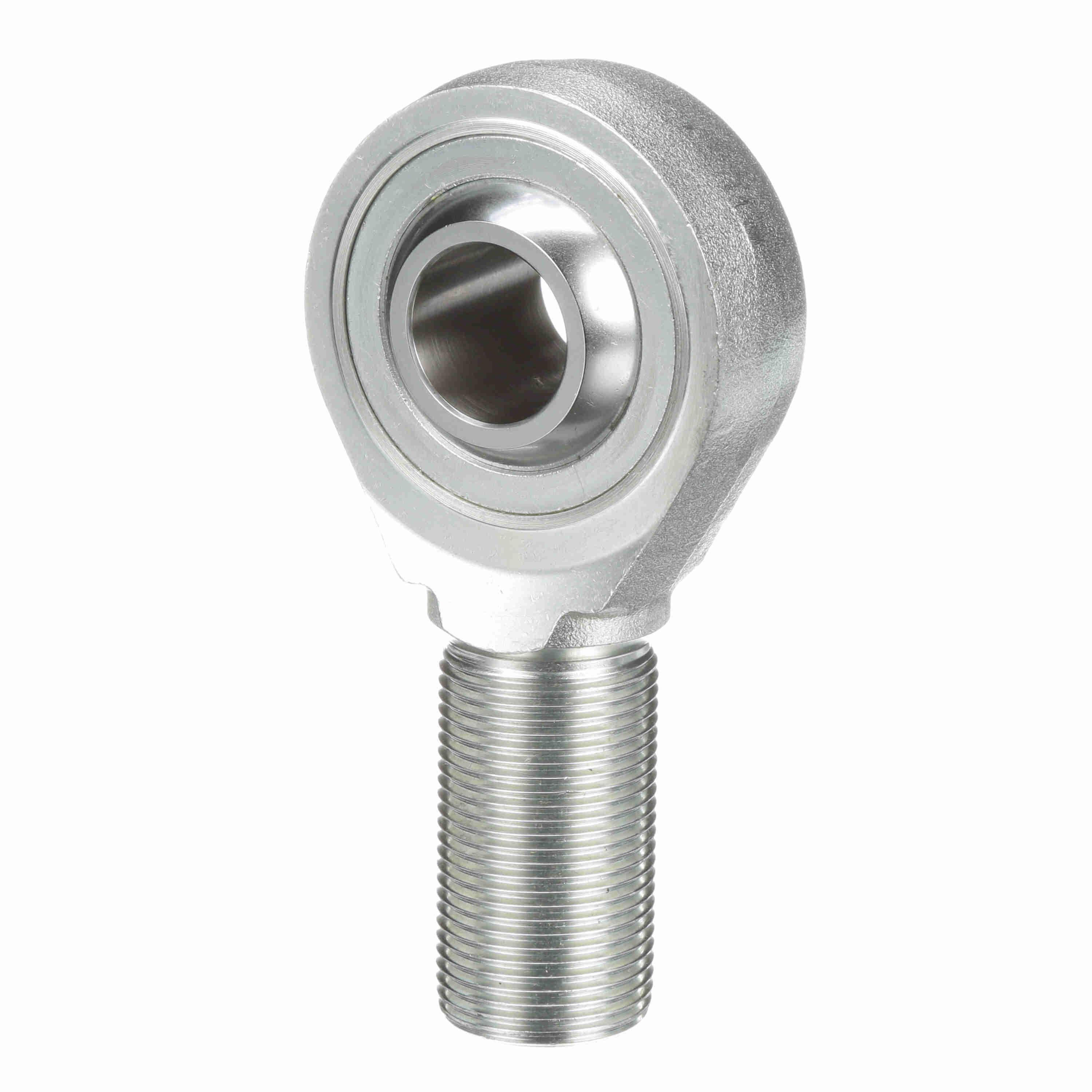

Sealmaster 1" SAE RIGHT-HAND MALE ROD ENDS SEA TRE-16
Sealmaster® two and three piece rod end bearing housing designs have been optimized for overall strength. This housing advantage and variety of outer race materials including brass, steel, Delrin® and PTFE liners provide a wide selection of application solutions. Sealmaster® rod end bearings can be joined together or connected with a threaded rod or tube as linkage assemblies for flexibility in motion transfer. In addition Sealmaster® rod end bearings can accommodate angular misalignment to provide ease in assembly and smooth motion transfer in a variety of applications.
-
BrandSealmaster®
-
UPC662288719236
-
Manufacturer Part Number1401600000
-
CountryUSA
-
Load Capacity21000 lb Static
-
Temperature Rating350 deg F
-
MaterialCarbon Steel
-
Thread Size1-1/4-12 Dia x 2.094 in L
-
Thread TypeMale UNF
-
Type3-Piece Precision Grade General Purpose
-
Width1-3/8 in
-
SeriesTRE
-
Outside Diameter2-3/4 in
-
Bore Diameter1 in
- Higher average tensile strength, fatigue life and competition
- Less wear than rod ends with 2-piece race designs
- Alloy steel heat treated and chrome plated ball for corrosion resistance
- Better wear resistance properties than carbon steel tin nickel plated balls
- Right hand external thread
- Heat Treated, Plated Alloy steel housing
-
Alternative Part NumberTRE 16
-
UNSPSC31171508
-
Package DescriptionEACH
-
