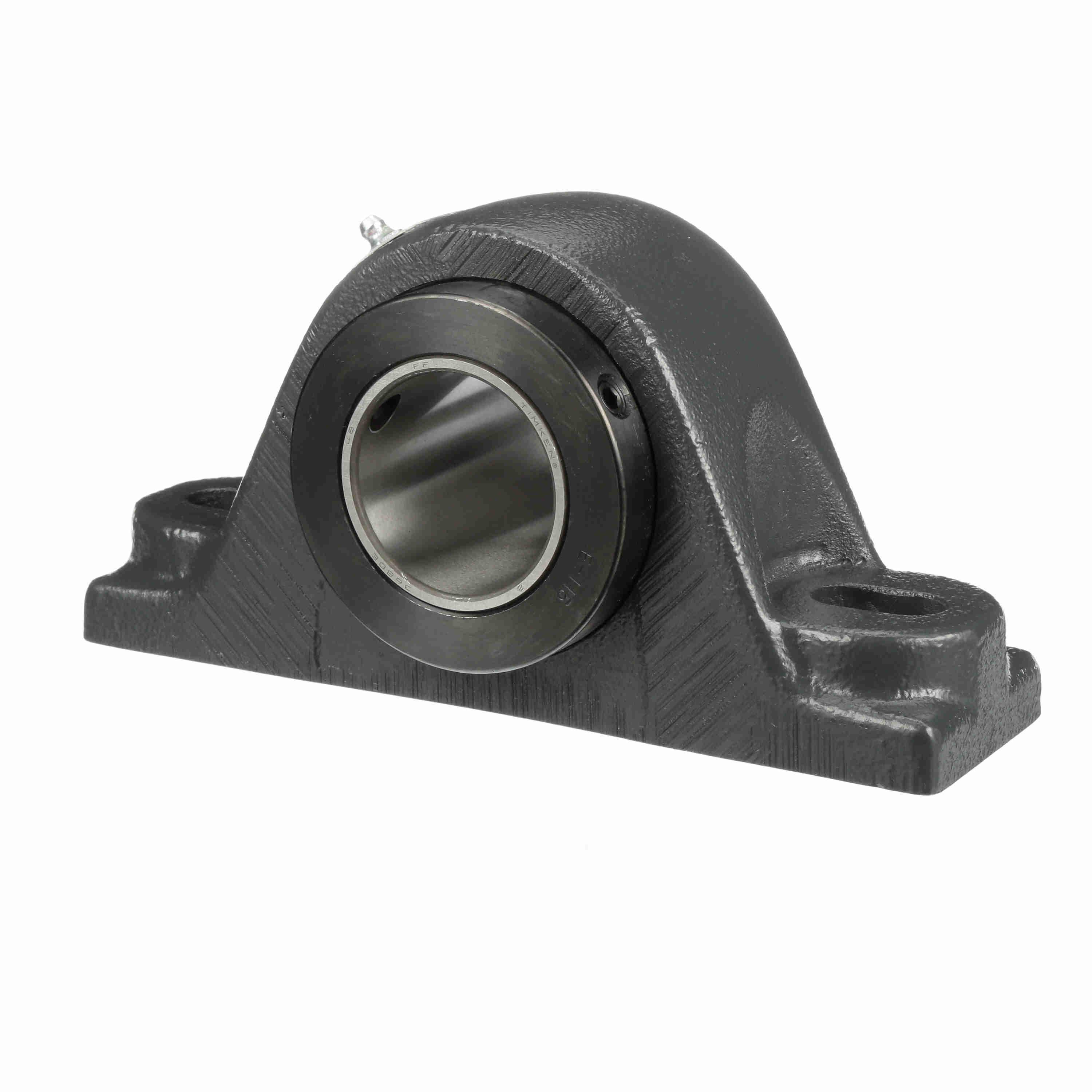

Browning 2"-ID 2-BOLT TRB PILLOW BLOCKS BRW PBE-920 X 2
Browning® E920 series mounted tapered roller bearings feature durable 1-piece non-expansion housings with Type E mounting dimensions and limited misalignment. The E920 series contains setscrew locking collars for easy installation. It also contains a contact face riding seal in order to provide a good balance between contaminant entry, grease retention and friction. Depending on your application requirements, these bearings are available in a wide variety of bore sizes and housing configurations.
-
BrandBrowning®
-
UPC662289566662
-
Manufacturer Part Number730007
-
CountryUSA
-
Load Capacity8070 lb Dynamic
-
Locking DeviceDouble Set Screw Collar
-
Temperature Rating-20 to 200 deg F
-
FinishGray Painted
-
MaterialCast Iron
-
Maximum Speed2000 rpm
-
TypeHeavy Duty Type SR
-
Mounting TypeTwo-Bolt Base
-
Seal TypeContact
-
SeriesPBE920
-
Base Width2-1/2 in
-
Base to Bore Centerline2-1/4 in
-
Bolt Center-to-Center Length6-3/16 to 7-1/4 in
-
Bore Diameter2 in
-
Bore TypeRound/Tapered
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height4-1/2 in
-
Overall Length8-7/8 in
-
Overall Width3-1/2 in
- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Single lip contact face-riding seals rotate with the shaft
- Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy 2-bolt cast iron housing
- Powder coat epoxy 2-bolt cast iron housing
- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading_x005f Single lip contact face-riding seals rotate with the shaft_x005f Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews_x005f Powder coat epoxy 2-bolt cast iron housing
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 100738536 |
| Motion Industries | 00570321 |
-
Alternative Part NumberPBE920X2
-
UNSPSC31171511
-
Package DescriptionEACH
-
Standards/ApprovalsAMBA Standard
-
Specification Sheet
-
Instruction/Installation Manual
