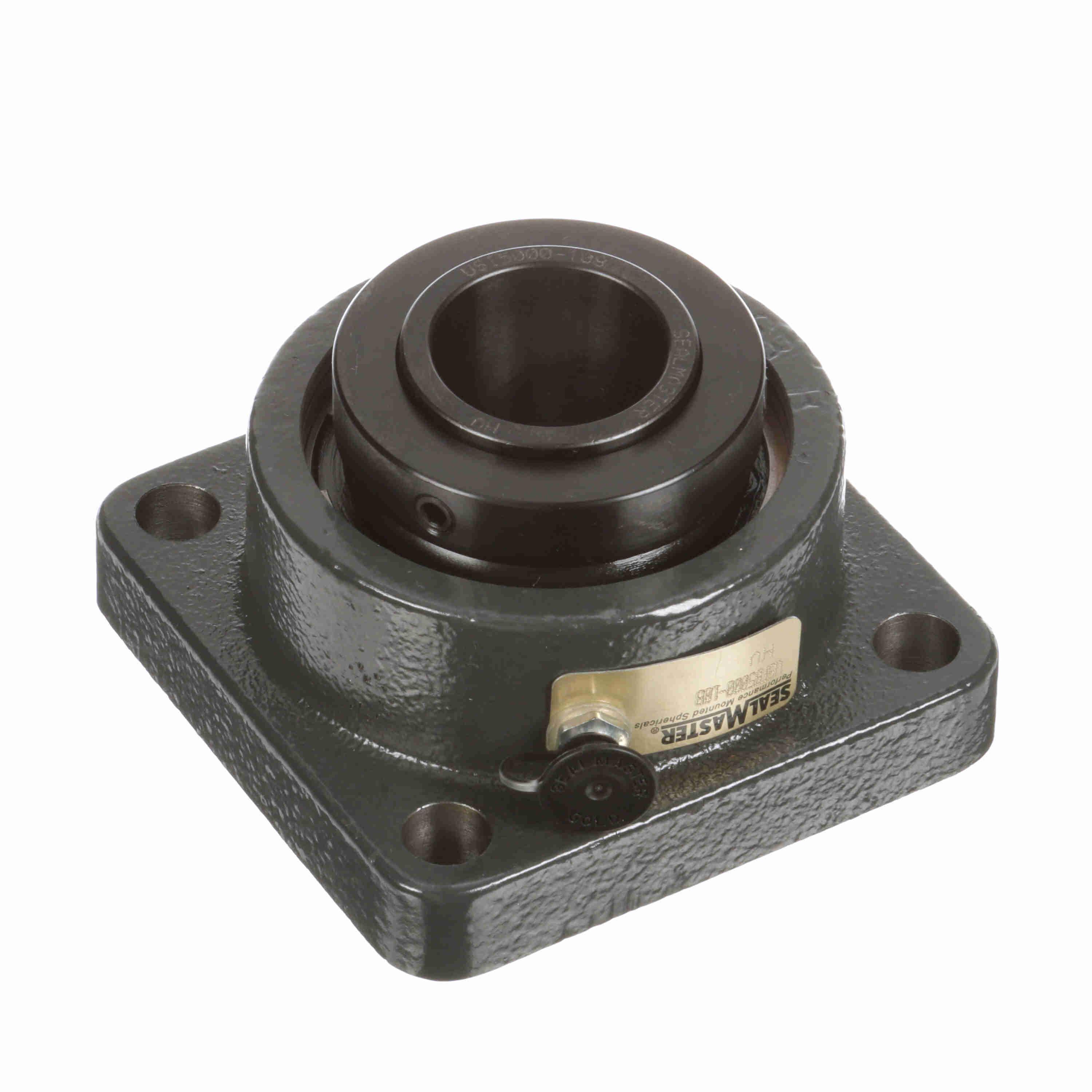

Sealmaster 1-1/2"-ID 4-BOLT SPH FLANGE UNITS BRW SFB-1000-NE X 1-1/2
Sealmaster® USRB performance mounted spherical roller bearings feature black oxide treated bearing steel races with optimized bearing geometry for load capacity, misalignment and speed capabilities. The USRB is available in both setscrew locking and adapter mounting system. The felt seal with flinger provides a good balance between contaminant entry, grease retention and friction. Depending on application requirements, these bearings are available in a wide variety of bore sizes, housing styles and sealing options.
-
BrandSealmaster®
-
UPC662461357491
-
Manufacturer Part Number737160
-
CountryUSA
-
Load Capacity20368 lb Dynamic/23609 lb Static
-
Locking DeviceCollar Mount/Set Screw
-
Temperature Rating250 deg F
-
FinishUncoated
-
Flange Mounting Type4-Bolt
-
Maximum Speed4000 rpm
-
TypeNon-Expansion Round/Straight Bore
-
Seal MaterialFelt
-
SeriesUSFB5000
-
Bearing MaterialCast Iron
-
Bolt Center-to-Center Length3-17/32 in
-
Bolt Circle Diameter5 in
-
Bore Diameter1-1/2 in
-
Overall Depth2-53/64 in
-
Overall Height4-5/8 in
-
Overall Length/Diameter4-5/8 in
- Sealmaster® offers an innovative double-row spherical roller bearing, featuring new geometries which provides optimal load capacity, misalignment and speed capability
- The Sealmaster® felt seal with flinger, mounted between races, can accommodate +/- 2 deg of misalignment
- The Sealmaster® performance mounted roller bearings feature locking collars and setscrews at 120 deg, providing a balanced 3-point contact
- Metal land riding retainer type
- 52100 black oxide coated steel bearing
- Wide race and rollers and steel cage for high dynamic load ratings
- Single-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy cast iron housing
-
Alternative Part NumberUSFB5000-108
-
UNSPSC31171501
-
Package DescriptionEACH
-
Standards/ApprovalsANSI/ABMA Standard 11
-
Catalog
-
Instruction/Installation Manual
