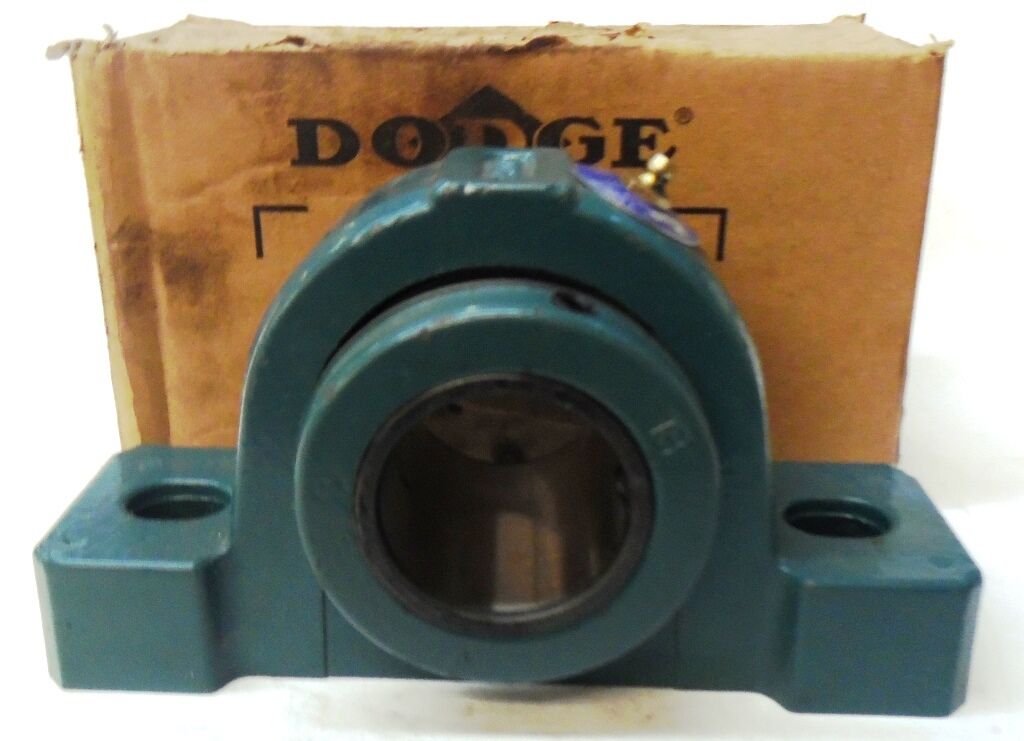

P-2-B-S-2215-R Dodge® 70285 Type S-2000 Pillow Block Roller Bearing Unit, 2-15/16 in Dia Bore, 7.94 to 8.31 in L Bolt Center-to-Center, 3-1/4 in Base to Bore Centerline, 10.44 in OAL 6.38 in OAH
-
BrandDodge®
-
Manufacturer Part Number70285
-
CountryUSA
-
Load Capacity41500 lb Dynamic/53000 lb Static
-
Locking DeviceSpringlok™ Concentric Collar
-
Temperature Rating-100 to 200 deg F
-
FinishBlack Oxide
-
MaterialCast Iron
-
Maximum Speed1490 rpm
-
TypeType S-2000
-
Mounting Type2-Bolt Base
-
Seal TypeTrident™ Triple Lip
-
Base Width3.08 in
-
Base to Bore Centerline3-1/4 in
-
Bolt Center-to-Center Length7.94 to 8.31 in
-
Bore Diameter2-15/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion Bearing (Fixed)
-
Overall Height6.38 in
-
Overall Length10.44 in
-
Overall Width3.59 in
