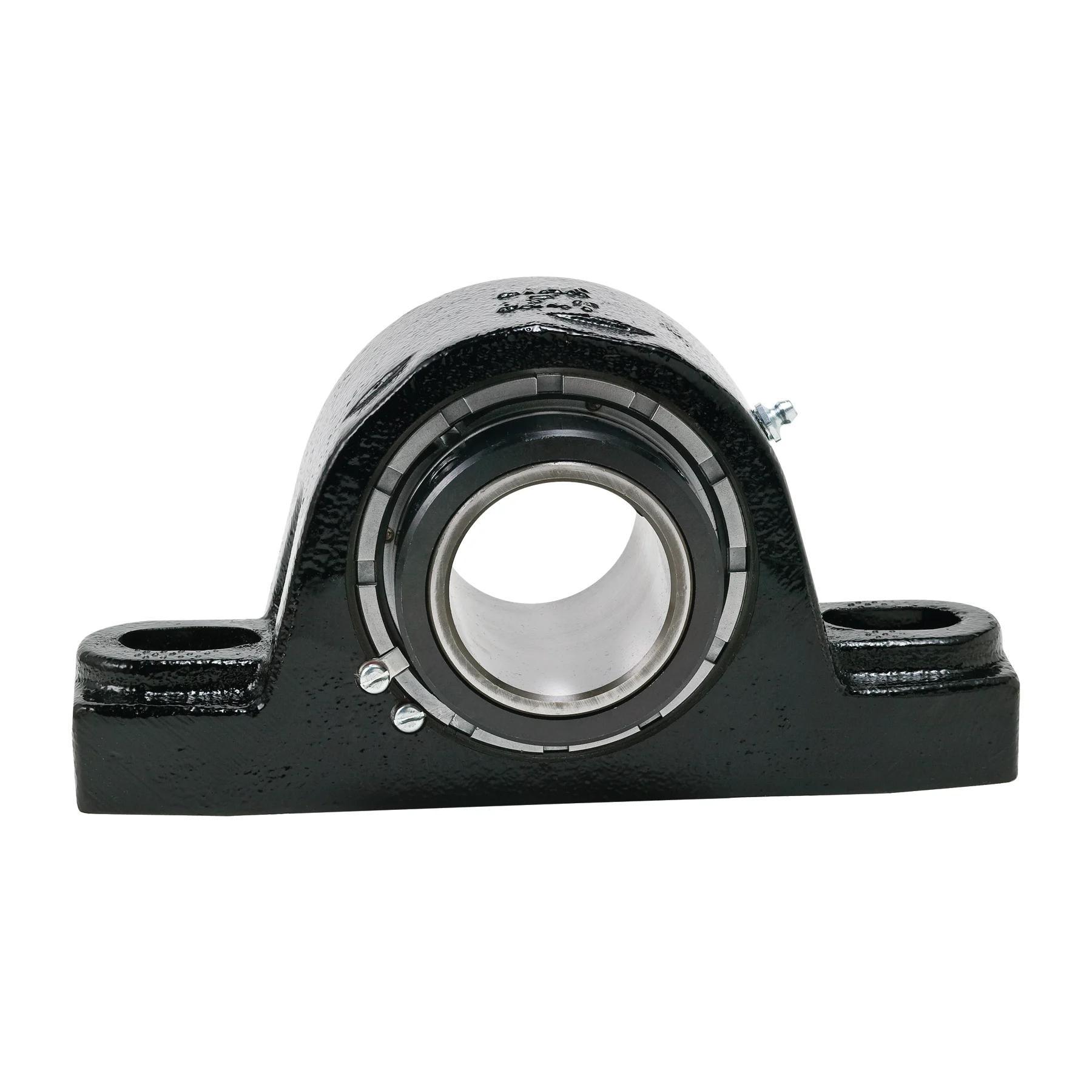

Rexnord 2-1/4"-ID 2-B SPH PILLOW BLOCKS REX MEP-2204
Rex® 10422897 2000 Normal Duty Pillow Block Spherical Roller Bearing, 2-1/4 in Dia Bore, 6-15/16 to 8-3/4 in L Bolt Center-to-Center, 2-3/4 in Base to Bore Centerline, 10-1/2 in OAL x 5-7/16 in OAH
-
BrandRexnord®
-
UPC698210700843
-
Manufacturer Part Number10422897
-
CountryUSA|Canada
-
Load Capacity36370 lb Dynamic/44400 lb Static
-
Locking DeviceSingle Set Screw Collar
-
Temperature Rating225 deg F
-
FinishPowder Coated
-
MaterialCast Iron
-
Maximum Speed2200 rpm
-
TypeNormal Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSpring-Loaded/Heavy Contact
-
Series2000
-
Base Width2-9/16 in
-
Base to Bore Centerline2-3/4 in
-
Bolt Center-to-Center Length6-15/16 to 8-3/4 in
-
Bore Diameter2-1/4 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height5-7/16 in
-
Overall Length10-1/2 in
-
Overall Width3-5/16 in
- Easy bearing clearance adjustment
- Replaceable bearing
- Pre-lubricated with standard grease for normal operation
- Super-finished raceways provide a cool running, quiet, high-speed and high-load capacity bearing
- Rugged housing
- Simplest installation
- Most economical
- Type E interchange
-
Alternative Part NumberMEP2204
-
UNSPSC31171511
-
Standards/ApprovalsANSI/ABMA STD 9
-
Warranty1 Year
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Catalog
