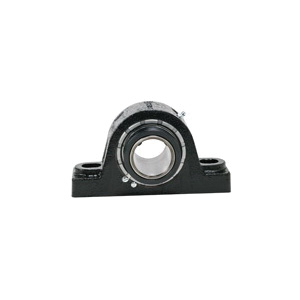

Link-Belt® 10418654 B22400 Pillow Block Spherical Roller Bearing, 1-11/16 in Dia Bore, 5-1/2 in L Bolt Center-to-Center, 2-1/8 in Base to Bore Centerline, 7-1/8 in OAL x 4-1/4 in OAH
Self aligning double row spherical roller bearings are designed to distribute the load over the symmetrical rollers, assuring positive tracking and smooth operation. The large roller complement provides high capacity for radial or combined radial-thrust loads. Osculation clearance at the ends of the rollers compensates for shock loads and prevents destructive edge loading. These precision bearings with double contoured retainer pockets are designed to meet a broad range of application requirements.
-
BrandLink-Belt®
-
UPC662327109639
-
Manufacturer Part Number10418654
-
CountryUSA|Canada
-
Load Capacity24700 lb Dynamic/28700 lb Static
-
Locking DeviceSingle Set Screw Collar
-
Temperature Rating225 deg F
-
FinishPowder Coated
-
MaterialCast Iron
-
Maximum Speed3100 rpm
-
Mounting TypeTwo-Bolt Base
-
Seal TypeClearance/Floating Labyrinth
-
SeriesB22400
-
Base Width2-1/2 in
-
Base to Bore Centerline2-1/8 in
-
Bolt Center-to-Center Length5-1/2 in
-
Bore Diameter1-11/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height4-1/4 in
-
Overall Length7-1/8 in
-
Overall Width3-1/8 in
- Spring locking collar locks inner ring securely to shaft
- Long inner ring for high stability and load support
- Self aligning double row
- Double contoured retainer pockets
- Slotted bolt holes in pillow block
- Extended inner ring, separable outer rings
- Misalignment capabilities total of 4 deg
- Factory set clearance and lubrication
- Field interchangeable seals
-
Alternative Part NumberPB22427H
-
UNSPSC31171511
-
Standards/ApprovalsANSI/ABMA STD 11
-
Warranty1 Year
-
Package DescriptionEACH
-
