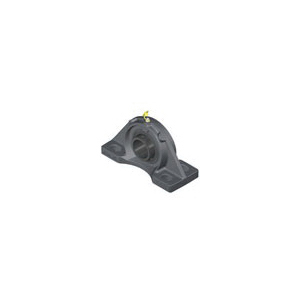

Sealmaster 3"-ID 4-BOLT PILLOW BLOCKS SEA MFPD-48
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing, and lubrication options or industry specific solutions.
-
BrandSealmaster®
-
UPC662461016558
-
Manufacturer Part Number702279
-
CountryUSA
-
Load Capacity17412 lb Dynamic
-
Locking DeviceDouble Set Screw
-
Temperature Rating250 deg F
-
FinishUncoated
-
MaterialCast Iron
-
Maximum Speed3000 rpm
-
TypeMedium Duty
-
Mounting TypeFour-Bolt Base
-
Seal TypeFelt
-
SeriesMFPD
-
Base Width5 in
-
Base to Bore Centerline3-1/2 in
-
Bolt Center-to-Center Length9 to 10-1/2 in
-
Bore Diameter3 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height7-3/8 in
-
Overall Length13 in
-
Overall Width3-7/8 in
- Wide outer ring
- Lock pin and dimple
- Zone hardened inner race
- Land riding retainer
- Housing fit
- Metal nameplate riveted to the housing allows for easy identification even after years of operation
- Alemite fitting lubrication
- 52100 black oxide coated steel bearing
-
Alternative Part NumberMFPD-48
-
UNSPSC31171504
-
Catalog
-
Instruction/Installation Manual
-
Specification Sheet
