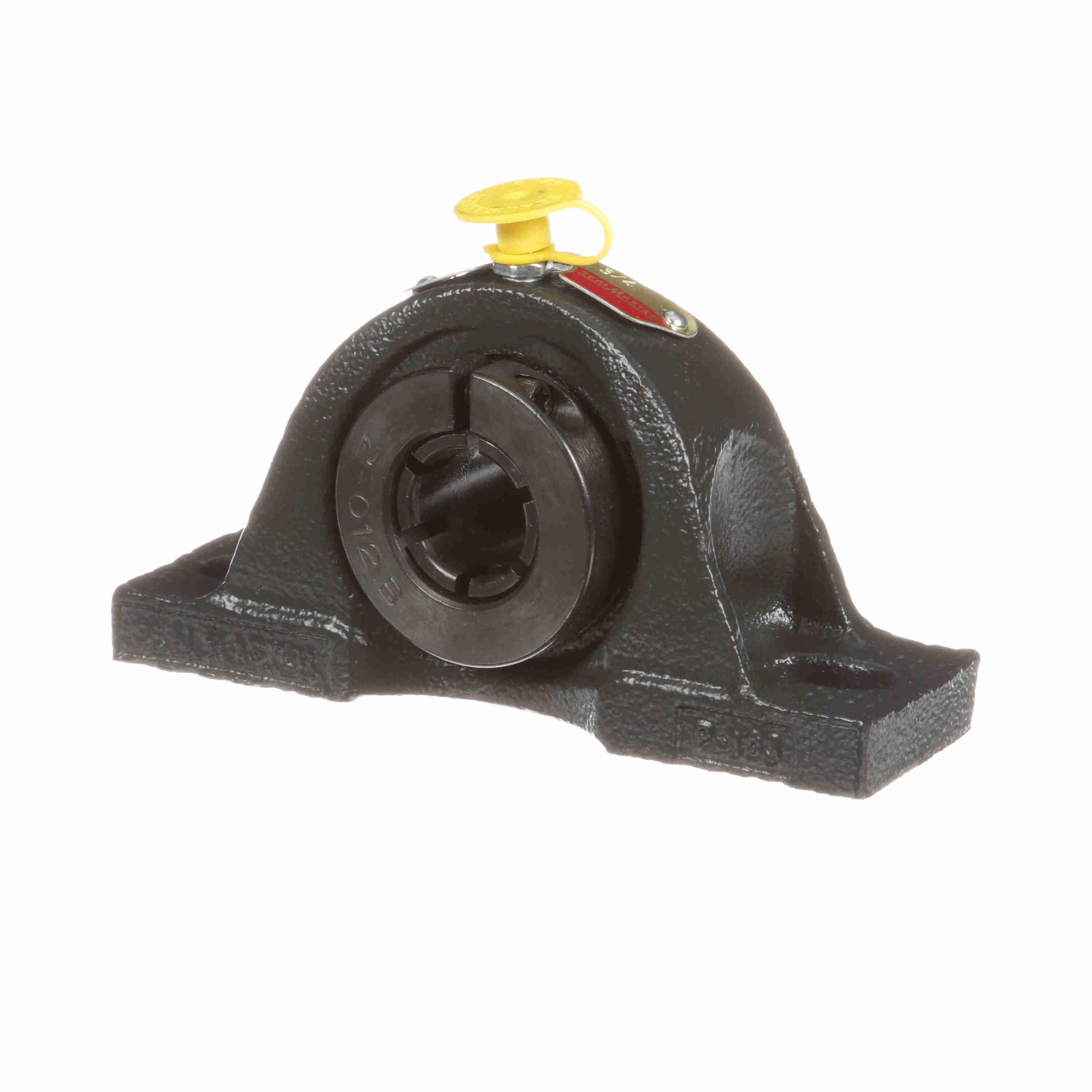

Sealmaster® 705880 NPL-T Standard-Duty Pillow Block Ball Bearing Unit, 1-1/2 in Dia Bore, 4-7/8 to 5-7/8 in L Bolt Center-to-Center, 1-15/16 in Base to Bore Centerline, 7-1/4 in OAL x 3-15/16 in OAH
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing, and lubrication options or industry specific solutions.
-
BrandSealmaster®
-
UPC662461033609
-
Manufacturer Part Number705880
-
CountryUSA
-
Load Capacity7340 lb Dynamic
-
Locking DeviceSkwezloc® Concentric Collar
-
Temperature Rating250 deg F
-
FinishUncoated
-
MaterialCast Iron
-
Maximum Speed4150 rpm
-
TypeStandard-Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeContact
-
SeriesNPL-T
-
Base Width2-1/8 in
-
Base to Bore Centerline1-15/16 in
-
Bolt Center-to-Center Length4-7/8 to 5-7/8 in
-
Bore Diameter1-1/2 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height3-15/16 in
-
Overall Length7-1/4 in
-
Overall Width2 in
- Wide outer ring
- Lock pin and dimple
- Zone hardened inner race
- Land riding retainer
- Housing fit
- Metal nameplate riveted to the housing allows for easy identification even after years of operation
- GoldPlex®-HP grease
- Alemite fitting lubrication
- 52100 black oxide coated steel insert
-
Alternative Part NumberNPL-24TC
-
UNSPSC31171504
-
Specification Sheet
-
Instruction/Installation Manual
-
Catalog
