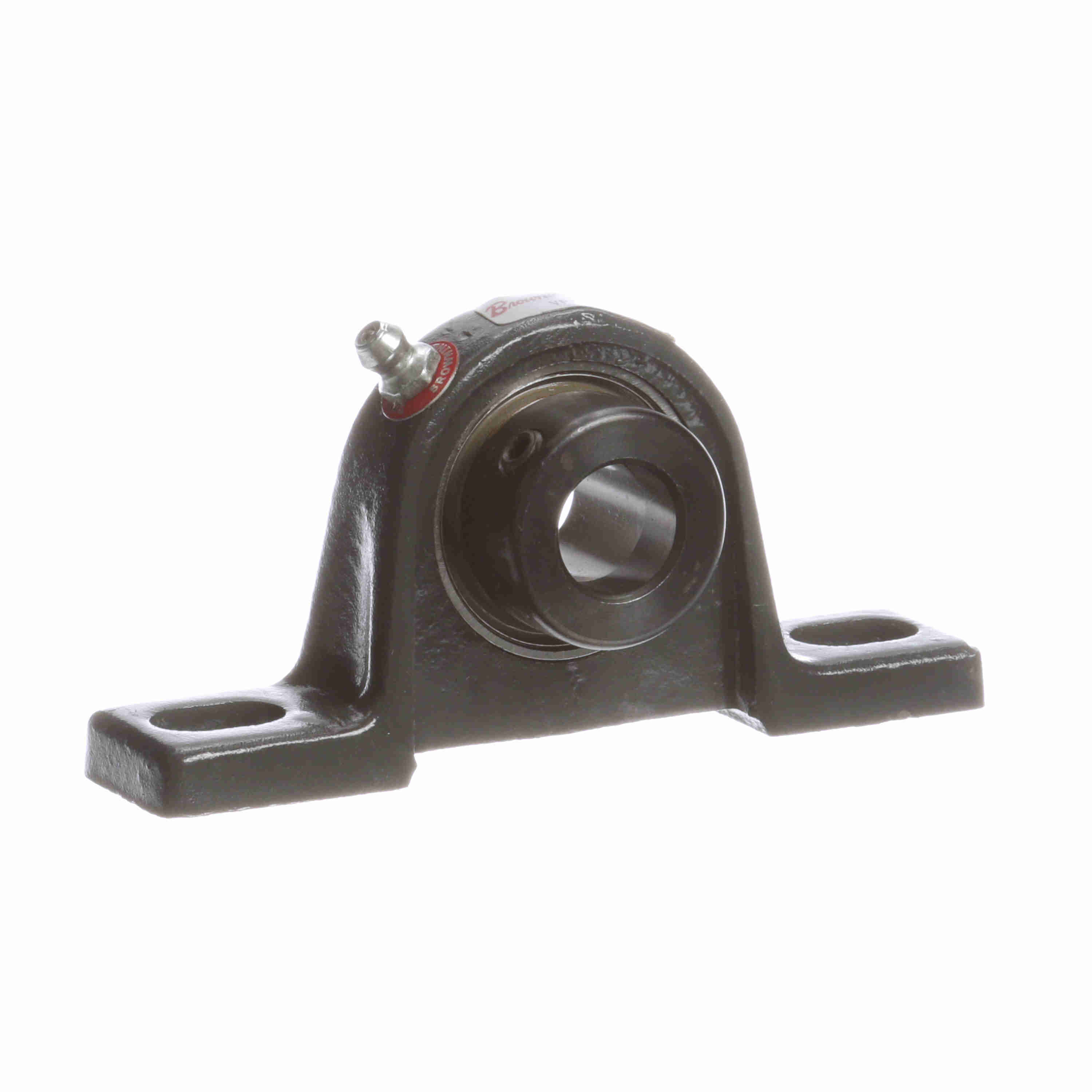

Browning 1"-ID 2-B HIGH BB PILLOW BLOCKS BRW VP-E-116-M
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289077557
-
Manufacturer Part Number767775
-
CountryUSA
-
Load Capacity2801 lb Dynamic/1651 lb Static
-
Locking DeviceEccentric
-
Temperature Rating200 to 250 deg F
-
FinishGray Painted
-
MaterialCast Iron
-
Maximum Speed3500 rpm
-
TypeIntermediate Duty High Base
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip
-
SeriesVPE 100
-

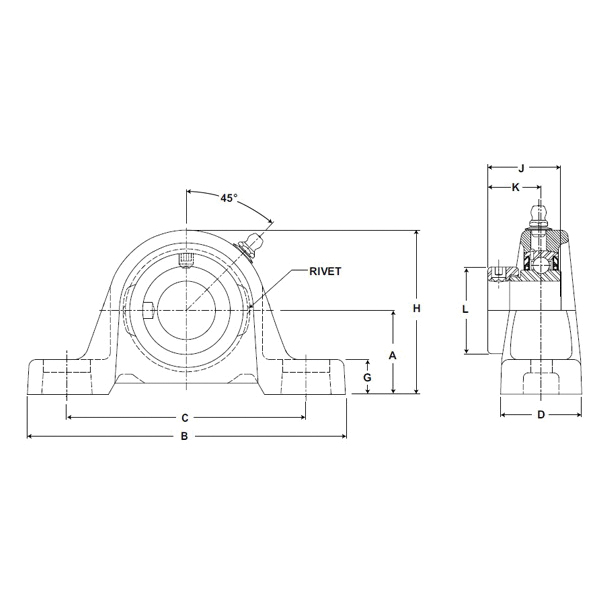

Base Width1-13/32 in
-
Base to Bore Centerline1-7/16 in
-
Bolt Center-to-Center Length3-11/16 to 4-9/16 in
-
Bore Diameter1 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height2-13/16 in
-
Overall Length5-1/2 in
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Semi solid cast iron rugged base design provides an excellent mounting foundation
- Zone hardened inner race
- Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
- Alemite fitting lubrication
- Eccentric locking designed for locking in direction of rotation
-
Alternative Part NumberVPE-116M
-
UNSPSC31171505
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
