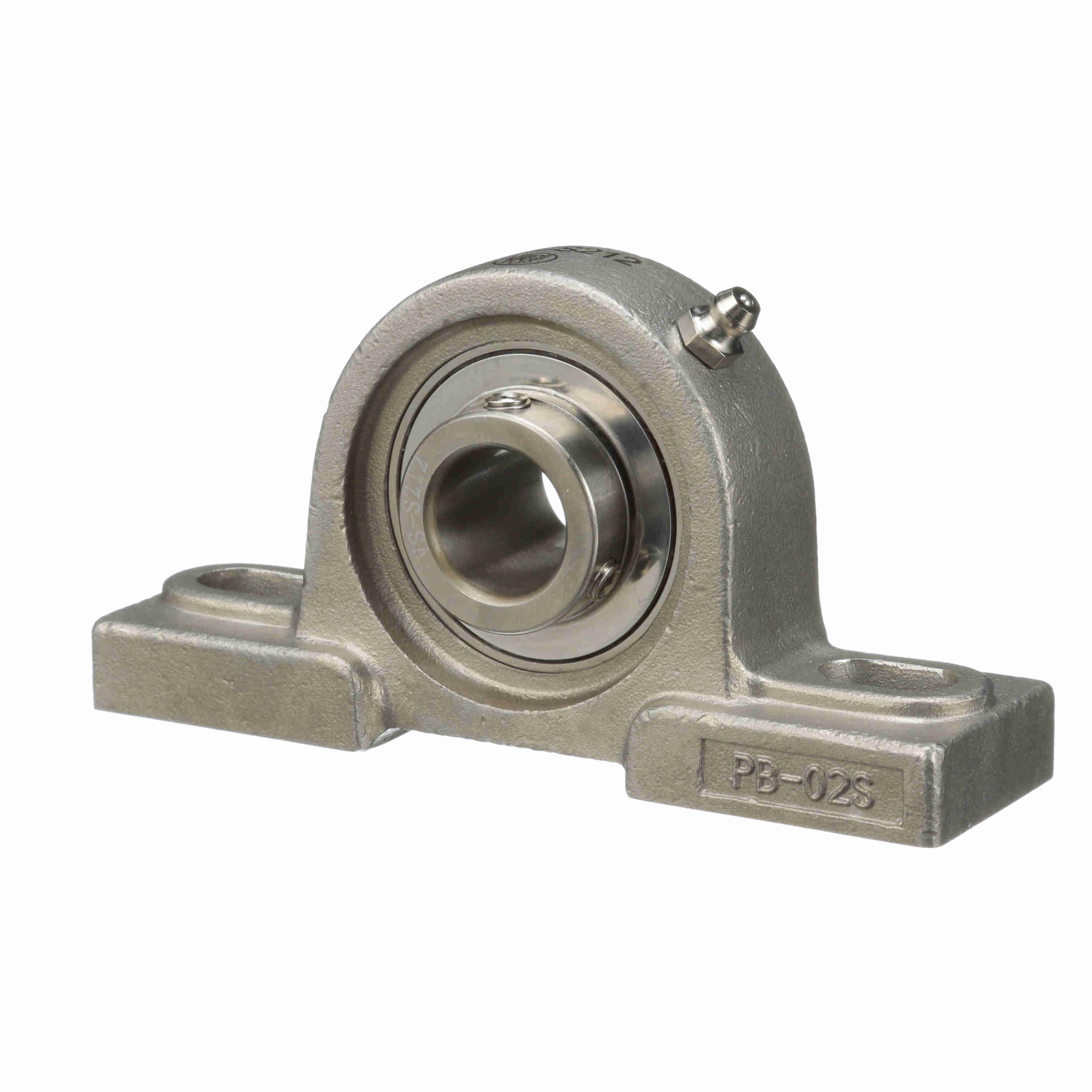

Browning 3/4"-ID S/STEEL INSERT BEARINGS BRW SP-SS-212
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662460400563
-
Manufacturer Part Number764084
-
CountryUSA
-
Locking DeviceSet Screw
-
Temperature Rating200 to 250 deg F
-
FinishGray Painted
-
MaterialStainless Steel
-
Maximum Speed6500 rpm
-
TypeNormal Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip Contact with Flinger
-
SeriesSPS-S200
-
Base Width1-7/32 in
-
Base to Bore Centerline1-5/16 in
-
Bolt Center-to-Center Length3-7/16 to 4-3/32 in
-
Bore Diameter3/4 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height2-9/16 in
-
Overall Length5 in
- 440C Stainless Steel bearing inner and outer ring with setscrew lock
- 304 Passivated stainless steel investment cast housing
- H1 Food Grade grease
- Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
- 52100 steel insert
- Alemite fitting lubrication
- 440C Stainless Steel bearing inner and outer ring with setscrew lock 304 Passivated stainless steel investment cast housing
-
Alternative Part NumberSPS-S212
-
UNSPSC31171505
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
