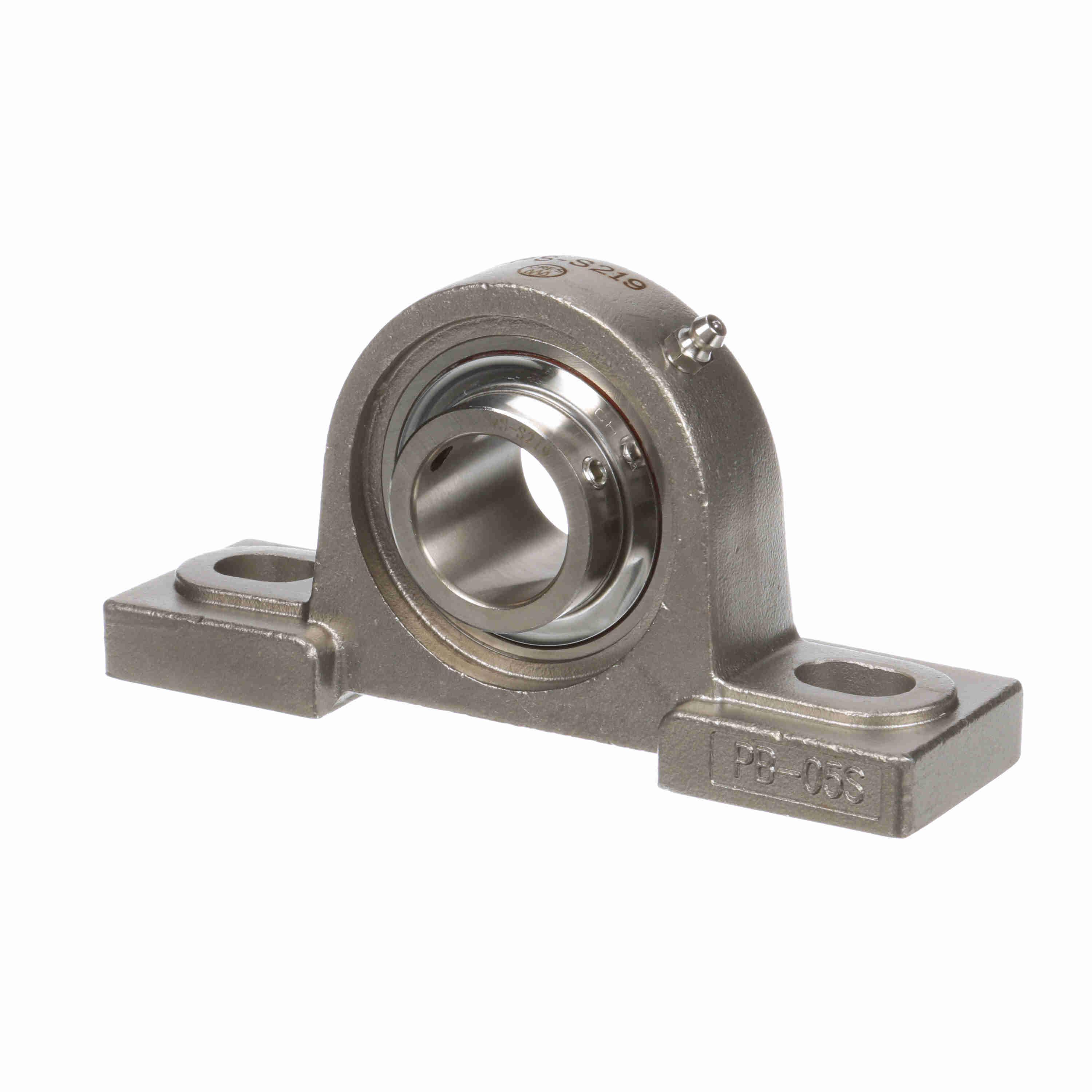

Browning® 764086 SPS-S200 Normal Duty Pillow Block Ball Bearing Unit, 1-3/16 in Dia Bore, 4-7/16 to 5-3/32 in L Bolt Center-to-Center, 1-11/16 in Base to Bore Centerline, 6-1/2 in OAL x 3-17/64 in OAH
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662460400587
-
Manufacturer Part Number764086
-
CountryUSA
-
Locking DeviceSet Screw
-
Temperature Rating200 to 250 deg F
-
FinishGray Painted
-
MaterialStainless Steel
-
Maximum Speed4500 rpm
-
TypeNormal Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip Contact with Flinger
-
SeriesSPS-S200
-
Base Width1-1/2 in
-
Base to Bore Centerline1-11/16 in
-
Bolt Center-to-Center Length4-7/16 to 5-3/32 in
-
Bore Diameter1-3/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height3-17/64 in
-
Overall Length6-1/2 in
- An anti-rotation rivet prevents outer ring creep or rotation within the housing
- Semi solid cast iron rugged base design provides an excellent mounting foundation
- Zone hardened inner race
- Setscrew locking is 120 deg spaced, balanced three-point contact minimizes inner ring distortion vibration while reducing noise and improving reliability
- 52100 steel insert
- Alemite fitting lubrication
- 440C Stainless Steel bearing inner and outer ring with setscrew lock_x005f 304 Passivated stainless steel investment cast housing_x005f Molded silicone single lip contact seal with 300 series stainless steel flinger_x005f H1 Food Grade grease
-
Alternative Part NumberSPS-S219
-
UNSPSC31171505
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
Warranty1 Year
-
