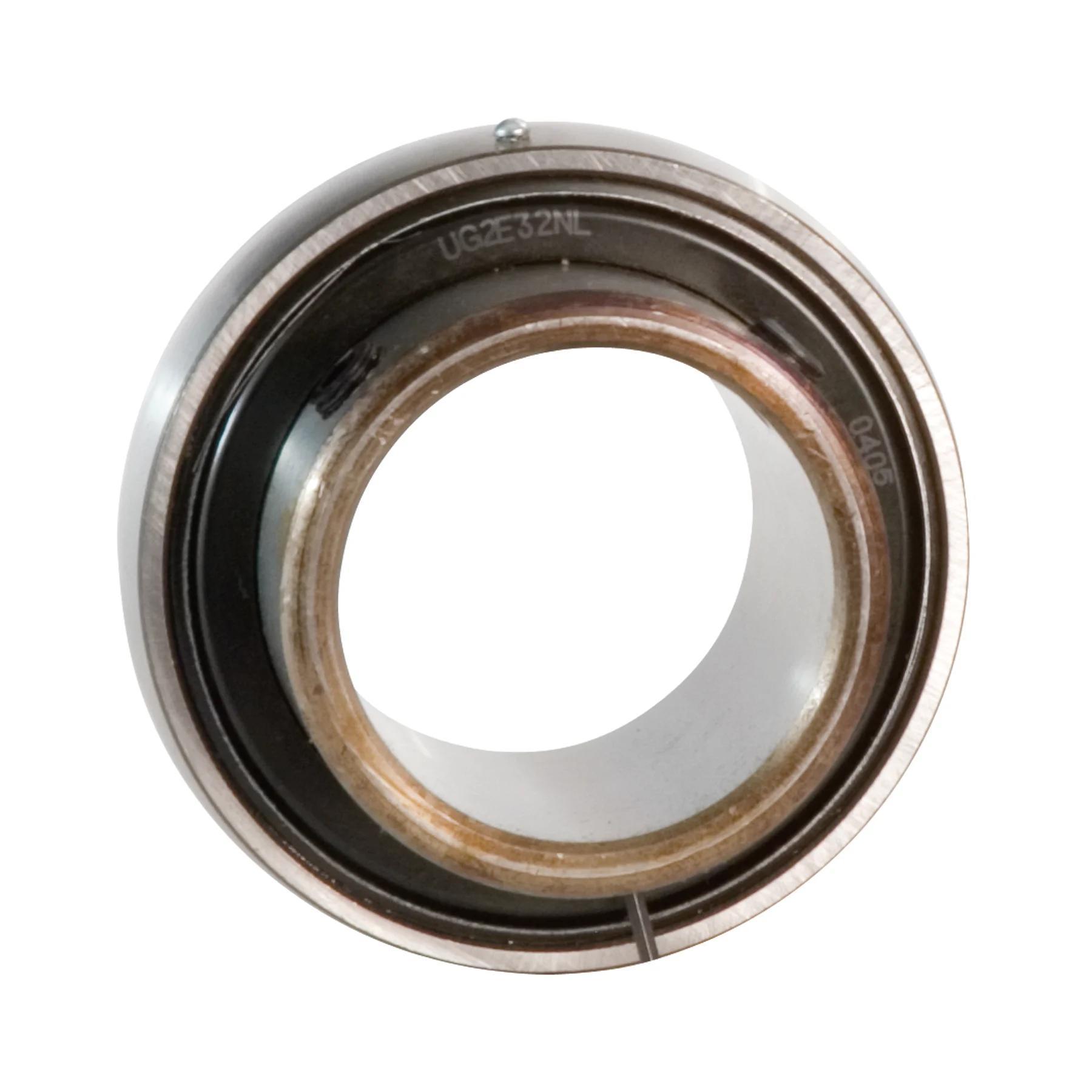

Link-Belt® 10438546 200 Standard Duty Unmounted Ball Bearing Unit With Collar and Setscrews, 1-3/8 in Dia Bore, 2.8346 in OD, 1-49/64 in W, 5810 lb Dynamic/3440 lb Static Load
200 series standard duty ball bearing units provide a versatility of application arrangements for carrying shafts with radial or combination radial and thrust loads. They are designed for general purpose industrial machinery, conveyors, chain and belt drives, fans and blowers, power transmission and many other applications.
-
BrandLink-Belt®
-
UPC662327149406
-
Manufacturer Part Number10438546
-
CountryUSA|Canada
-
Load Capacity5810 lb Dynamic/3440 lb Static
-
Temperature Rating225 deg F
-
FinishUncoated
-
Maximum Speed6850 rpm
-
TypeStandard Duty Unmounted
-
Width1-49/64 in
-
Series200
-
Bearing MaterialChrome Steel
-
Outside Diameter2.8346 in
-
Bore Diameter1-3/8 in
- 1 3/8 in Unmounted Ball Bearing, Standard Duty, Setscrew Locking, Single Lip Contact Seal, Relubricatable, Spherical OD
- Alignable precision deep groove ball bearing manufactured of quality alloy bearing steel provides high capacity and long life
- Wide inner ring for increased shaft stability
- Spherical outside diameter of outer ring
- Relubricatable bearing
- Setscrew locking device
- Single lip contact seal
- 207 size code
-
Alternative Part NumberUG222NL
-
UNSPSC31171500
-
Standards/ApprovalsANSI|ABMA STD 9
-
Warranty1 Year
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Catalog
